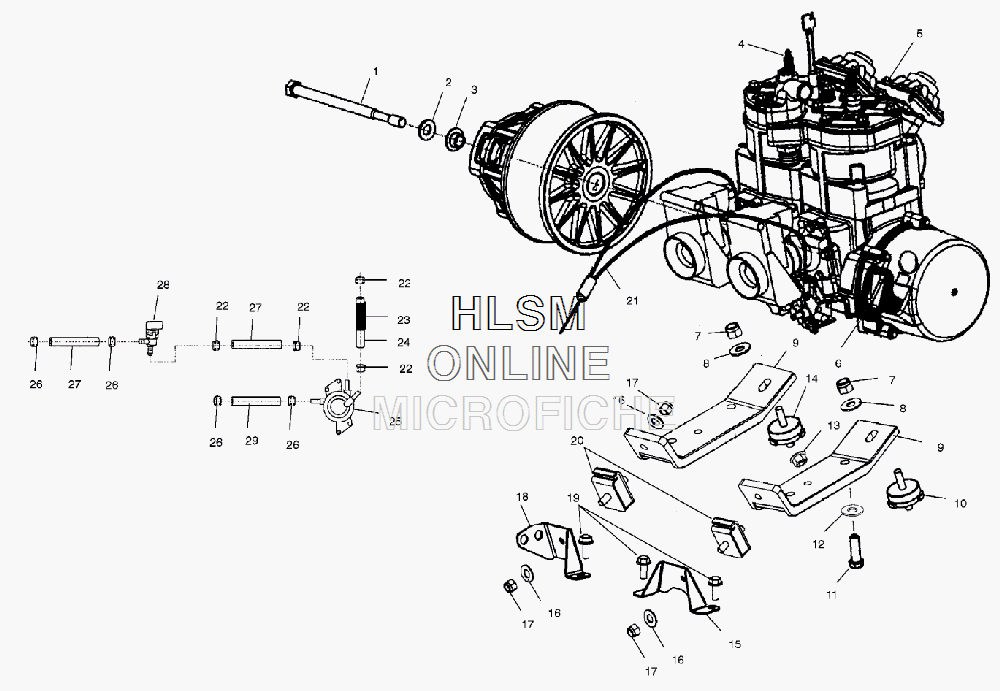

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17517501 SCREWSCREW
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
43070190 SPARK PLUG (RN57Y)SPARK PLUG (RN57Y)
-
52201936 SHORT BLOCK KITSHORT BLOCK KIT
-
65431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
77542451 NUT, NYLOCNUT, NYLOC
-
87555893 WASHERWASHER
-
95245465 STRAP, ENGINE MOUNT (LEFT)STRAP, ENGINE MOUNT (LEFT)
-
95245474 STRAP, ENGINE MOUNT (RIGHT)STRAP, ENGINE MOUNT (RIGHT)
-
103021290 MOUNT, ENGINEMOUNT, ENGINE
-
117512539 BOLTBOLT
-
127553101 WASHER, LOCKWASHER, LOCK
-
137547180 NUT, FLANGEDNUT, FLANGED
-
143021220 MOUNT, ENGINEMOUNT, ENGINE
-
155245044 BRACKET, ENGINE MOUNT (RIGHT)BRACKET, ENGINE MOUNT (RIGHT)
-
167555806 WASHERWASHER
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
181013397 WELD, ENG MOUNT BRACKET (LEFT)WELD, ENG MOUNT BRACKET (LEFT)
-
197517854 SCREWSCREW
-
203021206 MOUNT, ENGINEMOUNT, ENGINE
-
217080867 CABLE, THROTTLECABLE, THROTTLE
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238360052-15 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
248450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
252520259 PUMP, FUEL (BLACK)PUMP, FUEL (BLACK)
-
267080307 CLAMPCLAMP
-
278350018-160 TUBING (160CM)TUBING (160CM)
-
287052249 VALVE, FUEL PLASTICVALVE, FUEL PLASTIC
-
298350017-160 FUEL LINE (5/16'')FUEL LINE (5/16'')
