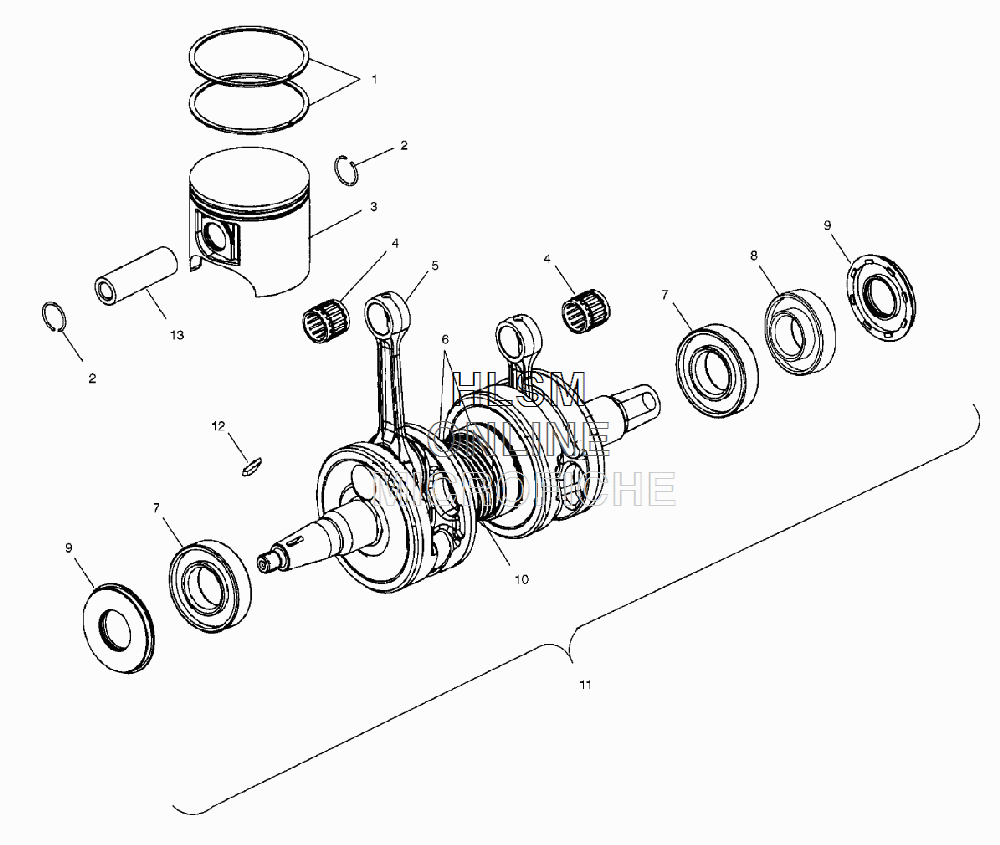

PISTON AND CRANKSHAFT для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска
-
№АртикулНазвание
-
12201196 PISTON RINGS KIT (70.5MM)PISTON RINGS KIT (70.5MM)
-
23022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32201560 PISTON ASSY. (70.5MM) (INCL. 1, 2, 13)PISTON ASSY. (70.5MM) (INCL. 1, 2, 13)
-
43552108 BEARINGBEARING
-
52201132 CONNECTION ROD KITCONNECTION ROD KIT
-
63514363 BEARING, BALLBEARING, BALL
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL EXTRACEBEARING, BALL EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112201234 CRANKSHAFT KIT (INCL. 6, 10)CRANKSHAFT KIT (INCL. 6, 10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
