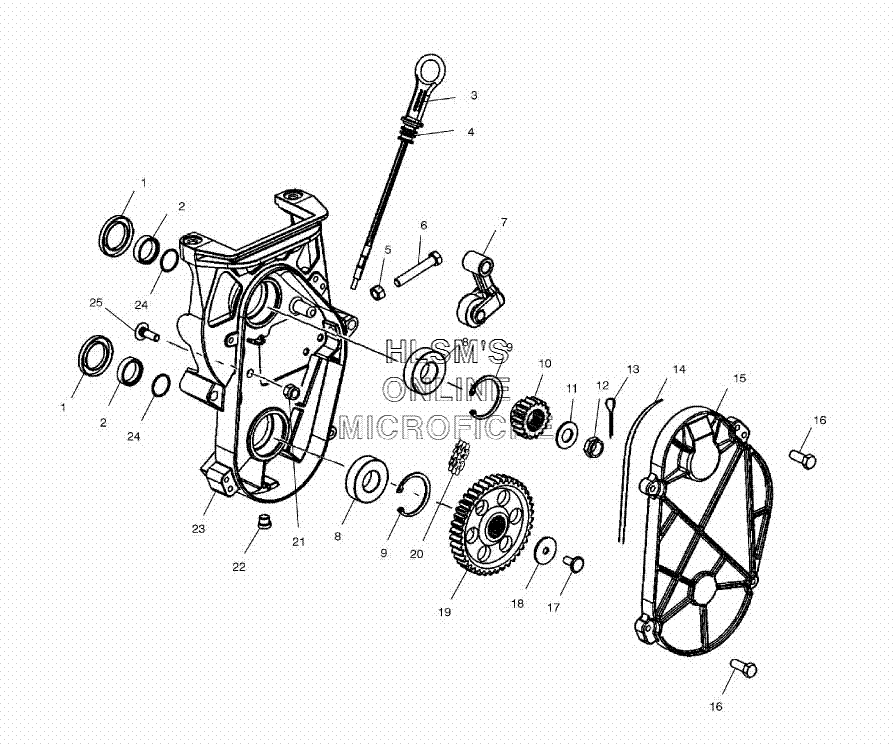

CHAINCASE ASSEMBLY для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
25020588 SLEEVE, SEALSLEEVE, SEAL
-
35431419 DIPSTICK ASSY.DIPSTICK ASSY.
-
45410675 O-RINGO-RING
-
57542404 NUTNUT
-
67515551 SCREWSCREW
-
71332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
73553002 BEARINGBEARING
-
75630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
77558702 WASHER, THRUSTWASHER, THRUST
-
77662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
75630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83514309 BEARING, BALLBEARING, BALL
-
97718406 RING, RETAININGRING, RETAINING
-
103221096 SPROCKET (20 TEETH 15 SPLINE)SPROCKET (20 TEETH 15 SPLINE)
-
117571620 WASHER, SLOTTEDWASHER, SLOTTED
-
127542811 NUTNUT
-
137661401 COTTER, PINCOTTER, PIN
-
145410277 GASKET, CHAINCASEGASKET, CHAINCASE
-
155630968 COVER, CHAINCASECOVER, CHAINCASE
-
167512242 SCREWSCREW
-
177517979 SCREWSCREW
-
187571618 WASHERWASHER
-
193222099 SPROCKET (15 TEETH)SPROCKET (15 TEETH)
-
203221113 CHAIN, HYVO (66 P) (3/4W)CHAIN, HYVO (66 P) (3/4W)
-
217542451 NUT, NYLOCKNUT, NYLOCK
-
227052115 PLUGPLUG
-
235132158 CHAINCASECHAINCASE
-
245410613 O-RINGO-RING
-
257515477 BOLTBOLT
