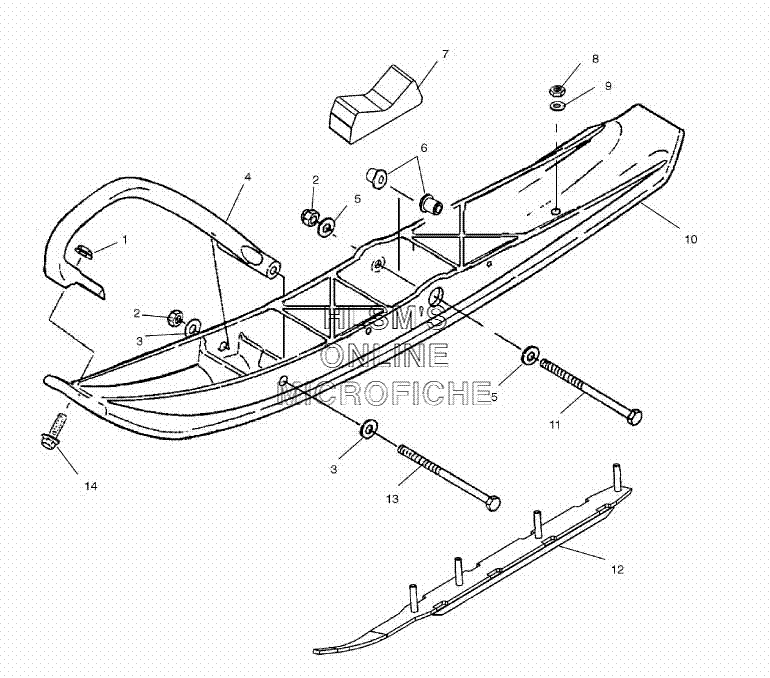

SKI ASSEMBLY (BUILT BEFORE 11/5/01) для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542439 NUT, NYLOCKNUT, NYLOCK
-
37555832 WASHERWASHER
-
45434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING PLASTIC SKI (.390 ID)BUSHING PLASTIC SKI (.390 ID)
-
75412018 STOP SKI, RUBBERSTOP SKI, RUBBER
-
87542324 NUTNUT
-
97556175 WASHERWASHER
-
105433873-070 COMP SKI ASSY. (BLACK)COMP SKI ASSY. (BLACK)
-
117517968 SCREWSCREW
-
121821215 WELD, SKAG DUAL (BLACK)WELD, SKAG DUAL (BLACK)
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
