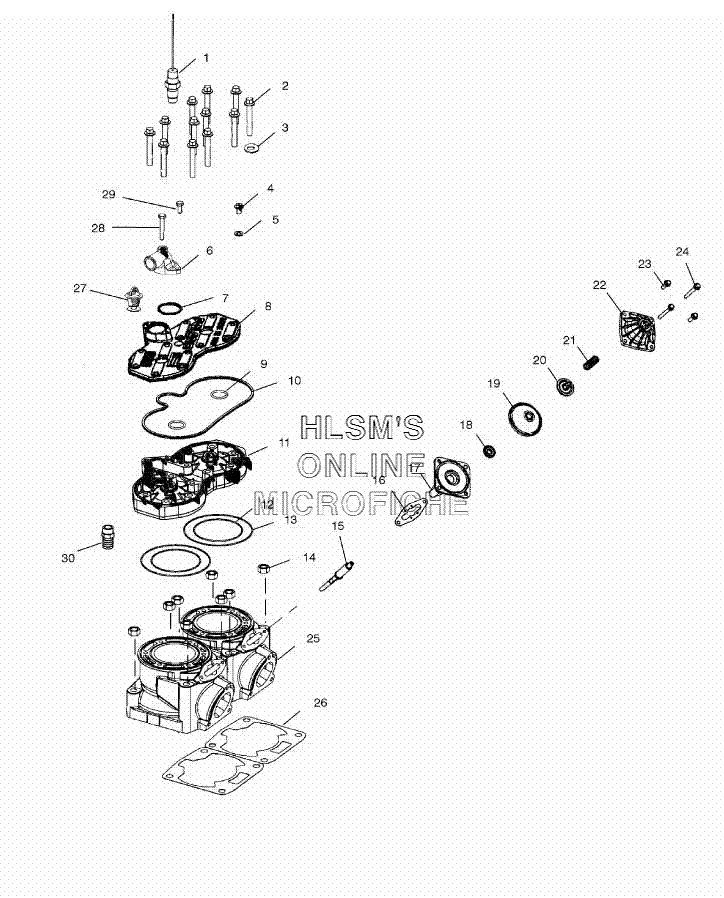

CYLINDER ASSEMBLY для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска
-
№АртикулНазвание
-
14010398 SENSOR THERMISTERSENSOR THERMISTER
-
27517533 SCREWSCREW
-
37517679 SCREWSCREW
-
47555998 WASHER, FLATWASHER, FLAT
-
55630992 COVER, THERMOSTATCOVER, THERMOSTAT
-
65411521 O-RING, LIPSEALO-RING, LIPSEAL
-
75631199-366 COVER, HEADCOVER, HEAD
-
85411411 O-RINGO-RING
-
95411465 SEAL, HEADSEAL, HEAD
-
103022057 HEAD, CYLINDERHEAD, CYLINDER
-
115410932 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUTNUT
-
141201958 VALVE GUILLOTINE ASSY.VALVE GUILLOTINE ASSY.
-
155812241 GASKET, BASE TO CYLINDER EXHAUST VALVEGASKET, BASE TO CYLINDER EXHAUST VALVE
-
161202216 BASE ASSY., EXHAUST VALVEBASE ASSY., EXHAUST VALVE
-
175132950 WASHER BELLOWS, EXHAUST VALVEWASHER BELLOWS, EXHAUST VALVE
-
185412056 BELLOWS, FABRIC POLYESTERBELLOWS, FABRIC POLYESTER
-
195631152 CAP.NUT, BELLOW EXHAUST VALVECAP.NUT, BELLOW EXHAUST VALVE
-
207041786-03 SPRING COMP. (GREEN/WHITE)SPRING COMP. (GREEN/WHITE)
-
215434175 HOUSING, BELLOWS EXHAUST VALVE BUSHINGHOUSING, BELLOWS EXHAUST VALVE BUSHING
-
227516820 SCREWSCREW
-
237517932 SCREWSCREW
-
243021257 CYLINDERCYLINDER
-
255811916 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
267052258 THERMOSTAT, W/O BYPASSTHERMOSTAT, W/O BYPASS
-
277516818 SCREWSCREW
-
287516822 SCREWSCREW
-
297052234 FITTING, 1'' HOSE BRASSFITTING, 1'' HOSE BRASS
