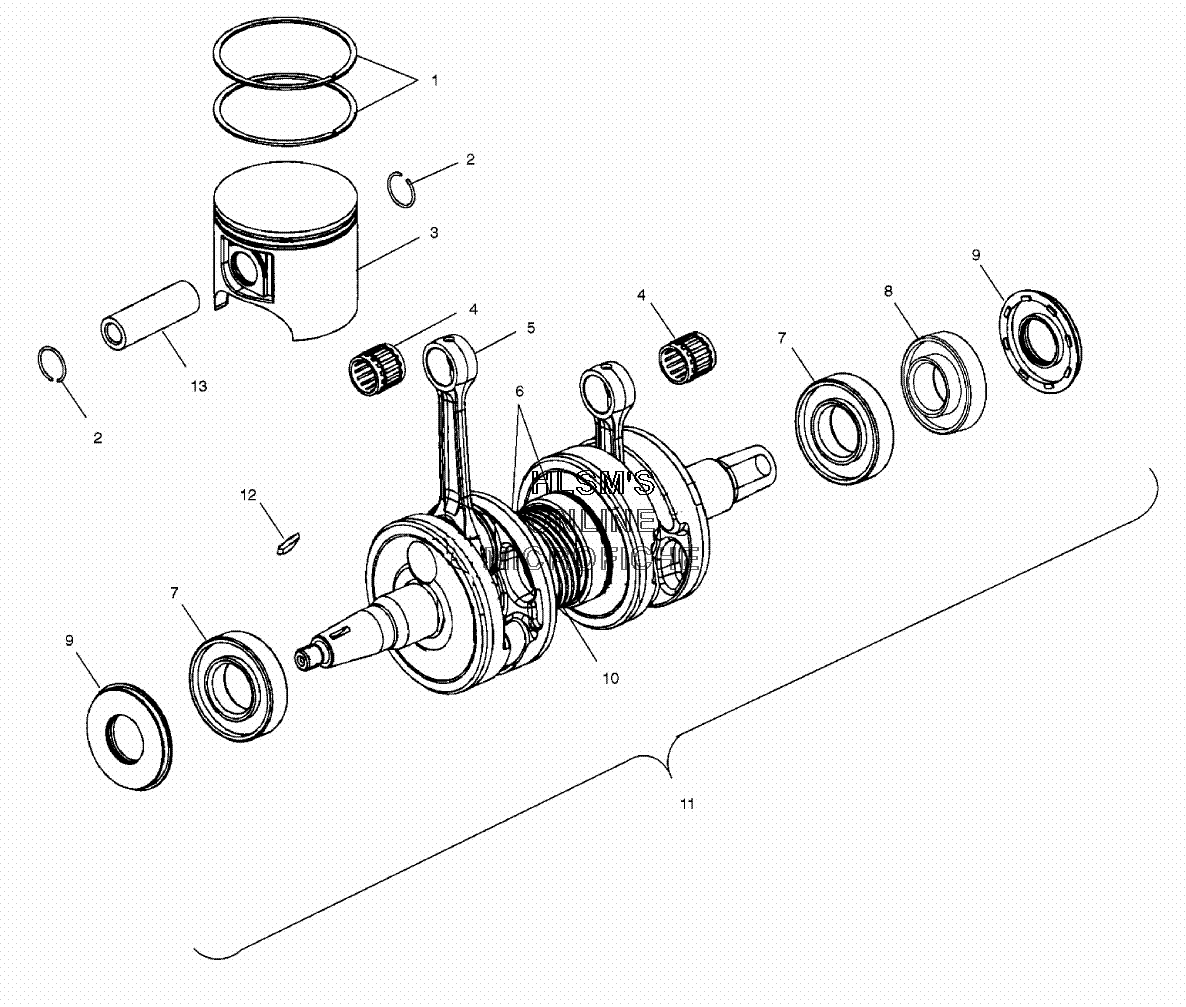

PISTON AND CRANKSHAFT для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска
-
№АртикулНазвание
-
12201256 PISTONRINGS, 1/2 KEY, 77.25 CHECK KITPISTONRINGS, 1/2 KEY, 77.25 CHECK KIT
-
23022950 CIRCLIP, PISTON, 20MM., ,CIRCLIP, PISTON, 20MM., ,
-
32201559 PISTON, ASSY, 77MM (INCL. 1, 2, 13)PISTON, ASSY, 77MM (INCL. 1, 2, 13)
-
43552108 BEARINGBEARING
-
52201132 CONNECT. ROD KITCONNECT. ROD KIT
-
63513508 BEARING, BALL 35X72X20 SL KOYOBEARING, BALL 35X72X20 SL KOYO
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112201234 CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 6-10)CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 6-10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
