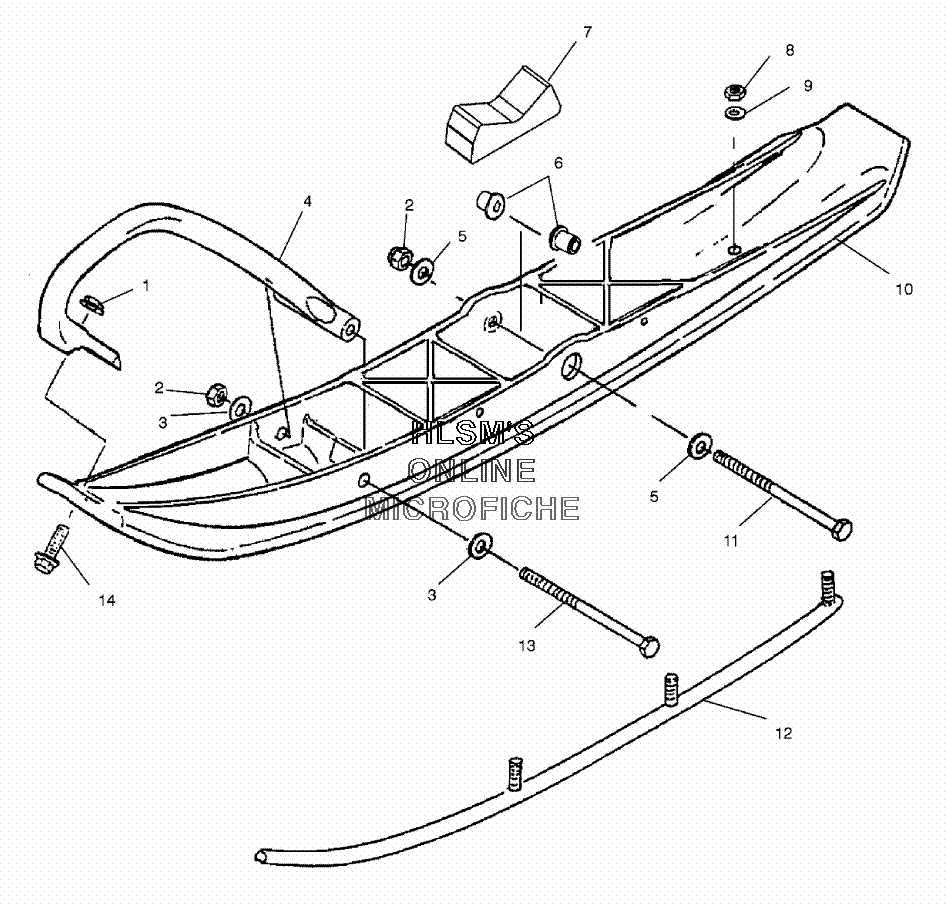

SKI ASSEMBLY для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-293 TOE, PLASTIC SKI (INDY RED)TOE, PLASTIC SKI (INDY RED)
-
57556130 WASHERWASHER
-
65132637 BUSHING, PLASTIC SKI, .390 IDBUSHING, PLASTIC SKI, .390 ID
-
75412018 STOP, SKI RUBBERSTOP, SKI RUBBER
-
87542324 NUTNUT
-
97556175 WASHERWASHER
-
105434425-070 COMP SKI ASSY., DEEPSADLSS (BLACK)COMP SKI ASSY., DEEPSADLSS (BLACK)
-
117517968 SCREWSCREW
-
122871688 SKAG, CARBIDE 4", 60 DEG, COMPSKAG, CARBIDE 4", 60 DEG, COMP
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
