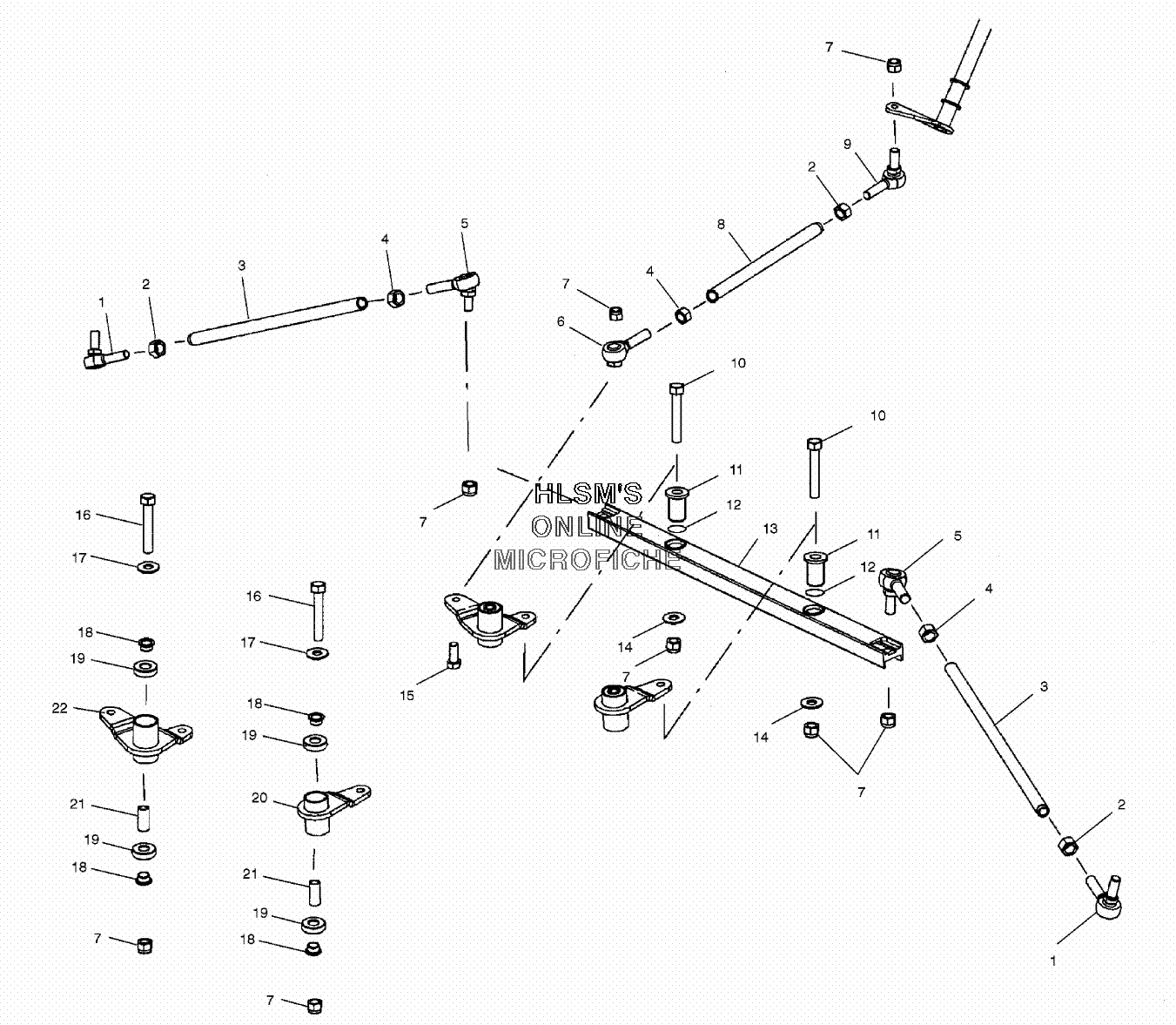

STEERING LINKAGE для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

№

Артикул

Название
1

7061057 ROD, END-3/8, PL, 75Ш, 1.00 (RIGHT)

ROD, END-3/8, PL, 75Ш, 1.00 (RIGHT)

9 780 ₽
2

7542401 NUT HEX (RIGHT)

NUT HEX (RIGHT)

110 ₽
3

5333983 ROD, TIE

ROD, TIE

6 660 ₽
4

7542424 NUT (LEFT)

NUT (LEFT)

150 ₽
5

7061055 ROD, END-3/8, PL, 750 STUD (LEFT)

ROD, END-3/8, PL, 750 STUD (LEFT)

9 780 ₽
6

7061083 ROD END 3/8-24, LRT (LEFT)

ROD END 3/8-24, LRT (LEFT)

9 780 ₽
7

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
8

5333982-067 ROD, DRAGLINK, STEEL (BLACK)

ROD, DRAGLINK, STEEL (BLACK)

9 360 ₽
9

7061084 ROD END, 3/8-24, LRT (RIGHT)

ROD END, 3/8-24, LRT (RIGHT)

9 780 ₽
10

7517583 SCREW

SCREW

630 ₽
11

5132938 BUSHING, SPACER, STEERING RACK

BUSHING, SPACER, STEERING RACK

2 810 ₽
12

5411220 O-RING

O-RING

1 670 ₽
13

1821157 STEERING RACK ASSY.

STEERING RACK ASSY.

23 920 ₽
14

7555983 WASHER, FLAT

WASHER, FLAT

110 ₽
15

7512404 BOLT

BOLT

630 ₽
16

7512435 BOLT

BOLT

250 ₽
17

7555797 WASHER

WASHER

460 ₽
18

5132106 BUSHING, REDUCER, 12MM TO .385

BUSHING, REDUCER, 12MM TO .385

1 730 ₽
19

3514320 BEARING, BALL, 600ILLU

BEARING, BALL, 600ILLU

3 750 ₽
20

1821045 IDLER ARM ASSY., EDGE R (INCL. 18, 19, 21)

IDLER ARM ASSY., EDGE R (INCL. 18, 19, 21)

37 440 ₽
21

5133057 SPACER, TUBE, PITMAN/IDLER ARMS

SPACER, TUBE, PITMAN/IDLER ARMS

1 520 ₽
22

1821043 PITMAN ARM ASSY., EDGE (INCL. 18, 19, 21) (REAR)

PITMAN ARM ASSY., EDGE (INCL. 18, 19, 21) (REAR)

33 280 ₽
