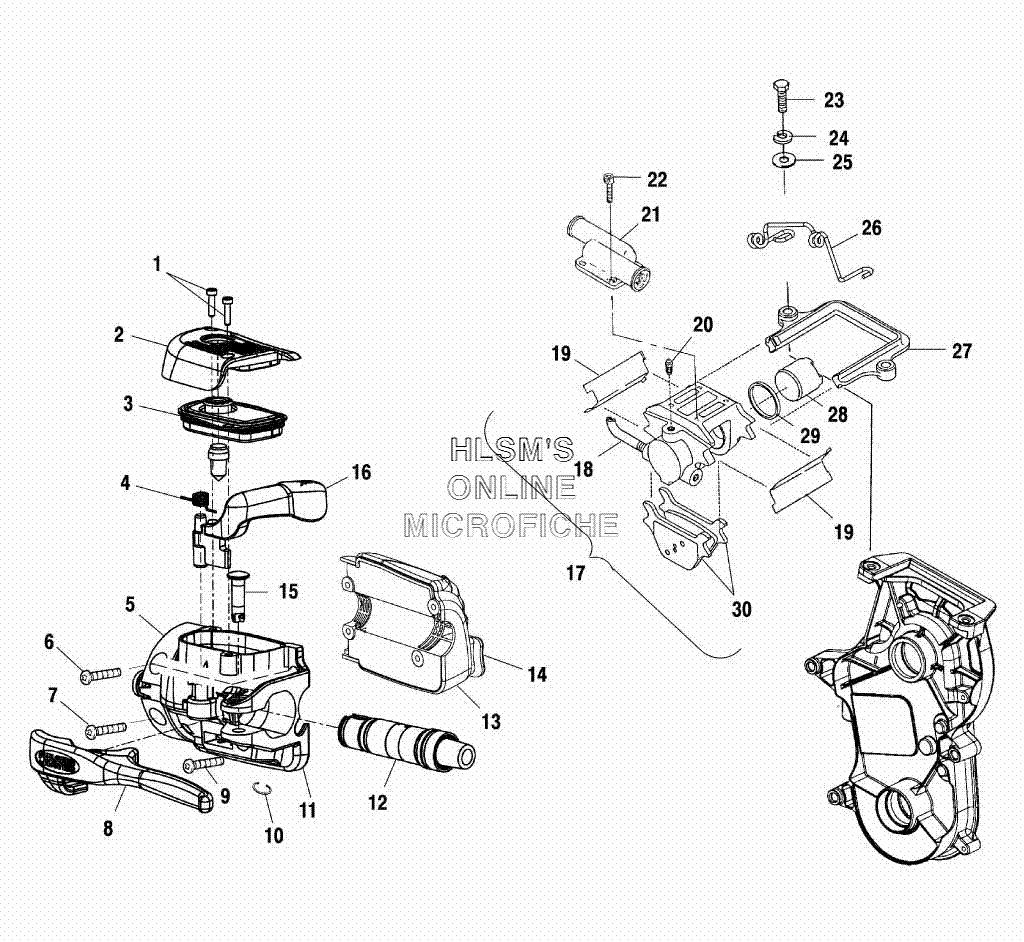

BRAKE ASSEMBLY для Polaris 700 CLASSIC BUILT BEFORE 1/1/01 (S02ND7CS) - 2002 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KIT (HAYES)COVER SCREW KIT (HAYES)
-
22201255 COVER ASSY. KIT (HAYES) [INCL. 1, 3]COVER ASSY. KIT (HAYES) [INCL. 1, 3]
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52202146 MASTER CYLINDER ASSY. KIT (HAYES) [INCL. 2, 4, 8, 11, 12, 15]MASTER CYLINDER ASSY. KIT (HAYES) [INCL. 2, 4, 8, 11, 12, 15]
-
67517441 SCREWSCREW
-
77512078 SCREWSCREW
-
82201943 LEVER KIT (3 NOTCH/PIN/RING)LEVER KIT (3 NOTCH/PIN/RING)
-
97517566 SCREWSCREW
-
102201945 SNAP RING KITSNAP RING KIT
-
112202146 MASTER CYLINDER ASSY. KIT (HAYES)MASTER CYLINDER ASSY. KIT (HAYES)
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 5/8'' CARTRIDGE SUB ASSY. KIT,5/8'' CARTRIDGE SUB ASSY. KIT,
-
132010167 CONTROL ASSY. (LEFT, BASIC)CONTROL ASSY. (LEFT, BASIC)
-
145433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
152201946 PIVOT PIN KIT, (ALUM W/SNAP RING)PIVOT PIN KIT, (ALUM W/SNAP RING)
-
162201251 PARKLEVER AND SPRING KIT [INCL. 4]PARKLEVER AND SPRING KIT [INCL. 4]
-
171910344 BRAKE CALIPER (HD, LIQ, NOSW) [INCL. 28, 29, 30]BRAKE CALIPER (HD, LIQ, NOSW) [INCL. 28, 29, 30]
-
181910546 LINE, BRAKE, EDGE, BRAIDEDLINE, BRAKE, EDGE, BRAIDED
-
192200467 CLIP SPRING KIT [QTY. 2]CLIP SPRING KIT [QTY. 2]
-
201930735 INLET KITINLET KIT
-
211930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
212201024 GASKET, BRK. COOLERGASKET, BRK. COOLER
-
221930729 SCREW SET [PKG. OF 4]SCREW SET [PKG. OF 4]
-
237515521 BOLTBOLT
-
247552603 WASHERWASHER
-
257555801 WASHERWASHER
-
265244413 GUIDE, ROPEGUIDE, ROPE
-
271930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
281930734 PISTON SEAL KIT [INCL. 29]PISTON SEAL KIT [INCL. 29]
-
292200466 SEALSEAL
-
302201430 BRAKE, PAD KIT (TYPE 81 LARGE) [INCL. 19]BRAKE, PAD KIT (TYPE 81 LARGE) [INCL. 19]
