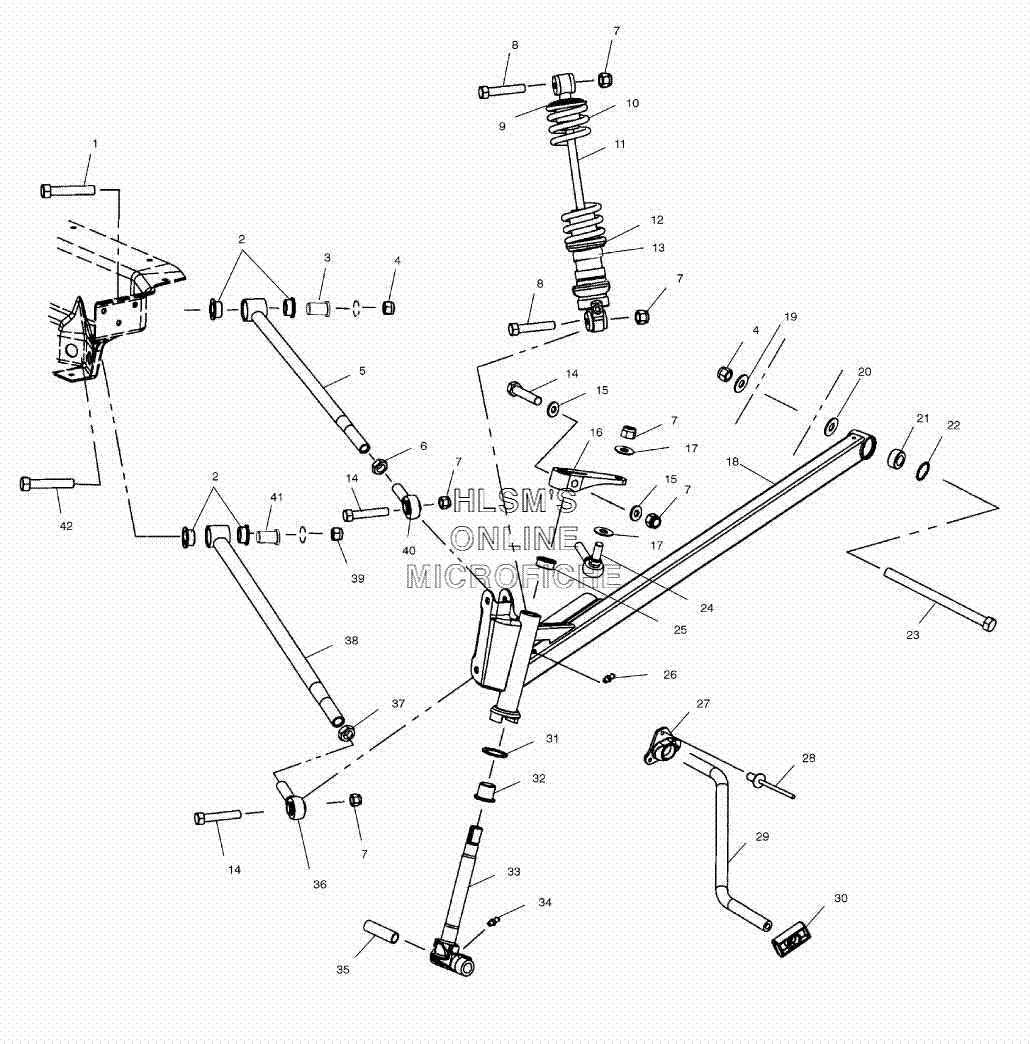

SUSPENSION - FRONT для Polaris 700 CLASSIC BUILT BEFORE 1/1/01 (S02ND7CS) - 2002 года выпуска

№

Артикул

Название
1

7512597 BOLT (7/16, 20X2.75, HXCAP, GR5, Y)

BOLT (7/16, 20X2.75, HXCAP, GR5, Y)

630 ₽
2

5434036 BUSHING, RAD ROD PIVOT (INNER)

BUSHING, RAD ROD PIVOT (INNER)

2 560 ₽
3

5132779 BUSHING, SHLDR (.443X.750X1.215)

BUSHING, SHLDR (.443X.750X1.215)

1 730 ₽
4

7547066 NUT (7/16, 20, NYLOK, Y)

NUT (7/16, 20, NYLOK, Y)

460 ₽
5

1820679-312 WELD, RADIUS ROD (UPPER, BLUE)

WELD, RADIUS ROD (UPPER, BLUE)

12 480 ₽
6

7542520 NUT JAM

NUT JAM

110 ₽
7

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
8

7515433 BOLT

BOLT

250 ₽
9

5020618 RETAINER, SPRING, SLOTTED

RETAINER, SPRING, SLOTTED

5 620 ₽
10

7041552-067 SPRING, COMP (IFS)

SPRING, COMP (IFS)

8 530 ₽
11

7041918 SHOCK, GAS (ARVIN, 11.09X16.35)

SHOCK, GAS (ARVIN, 11.09X16.35)

56 160 ₽
12

5431734 RING, SPRING PRELOAD ADJ.

RING, SPRING PRELOAD ADJ.

8 740 ₽
13

1500063 RETAINER, SPRING, BODY, THREADED

RETAINER, SPRING, BODY, THREADED

8 530 ₽
14

7517583 SCREW (3/8, 24X2 HX/CP GR5, Y, SP)

SCREW (3/8, 24X2 HX/CP GR5, Y, SP)

630 ₽
15

7555832 WASHER

WASHER

630 ₽
16

5132728 ARM, STEERING (MACHINED, EDGE)

ARM, STEERING (MACHINED, EDGE)

16 640 ₽
17

7555797 WASHER

WASHER

460 ₽
18

1820962-312 TRAILING ARM ASSY. (SVC, LEFT, M BLUE) [A] [INCL. 21, 22]

TRAILING ARM ASSY. (SVC, LEFT, M BLUE) [A] [INCL. 21, 22]

60 320 ₽
18

1820963-312 TRAILING ARM ASSY. (SVC, RIGHT, M BLUE)

TRAILING ARM ASSY. (SVC, RIGHT, M BLUE)

60 320 ₽
19

7555820 WASHER

WASHER

460 ₽
20

5132364 CUP, TRAILING ARM MNT

CUP, TRAILING ARM MNT

2 500 ₽
21

7061042 BEARING, (SPHERICAL, 7/16, PLASTIC)

BEARING, (SPHERICAL, 7/16, PLASTIC)

6 660 ₽
22

7710437 RING, RETAINING

RING, RETAINING

750 ₽
23

7512099 BOLT

BOLT

3 120 ₽
24

7061057 ROD, END (3/8, PL, 75Ш, 1.00, RIGHT)

ROD, END (3/8, PL, 75Ш, 1.00, RIGHT)

9 780 ₽
25

3573909 BUSHING, FLANGE

BUSHING, FLANGE

420 ₽
26

7080433 ZERK, FITTING, THREADED

ZERK, FITTING, THREADED

250 ₽
27

5433234 BUSHING, TORSION BAR

BUSHING, TORSION BAR

5 160 ₽
28

7621477 RIVET

RIVET

340 ₽
29

5244415-067 BAR, TRSN (1/2, 42.5 EDGE, BLACK)

BAR, TRSN (1/2, 42.5 EDGE, BLACK)

13 520 ₽
30

5433884 SLIDE, TORSION BAR (1/2)

SLIDE, TORSION BAR (1/2)

4 370 ₽
31

7556509 WASHER SPECIAL

WASHER SPECIAL

60 ₽
32

3574208 BUSHING, SPINDLE HSG

BUSHING, SPINDLE HSG

580 ₽
33

6230160-067 SHAFT, SPINDLE, HARDENED (BLACK)

SHAFT, SPINDLE, HARDENED (BLACK)

28 080 ₽
34

7080306 FITTING, LUBE.W/BALL CK.

FITTING, LUBE.W/BALL CK.

880 ₽
35

5010158 BUSHING, PIVOT

BUSHING, PIVOT

2 140 ₽
36

7061060 ROD END, RADIUS (1/2)

ROD END, RADIUS (1/2)

9 780 ₽
37

7542711 NUT, JAM

NUT, JAM

110 ₽
38

1820677-067 RADIUS ROD (LOWER, BLACK)

RADIUS ROD (LOWER, BLACK)

12 480 ₽
39

7542703 NUT FLEX

NUT FLEX

2 500 ₽
40

7061061 ROD END, RADIUS (7/16)

ROD END, RADIUS (7/16)

9 780 ₽
41

5132780 BUSHING, SHLDR (.505X.750X1.215)

BUSHING, SHLDR (.505X.750X1.215)

1 730 ₽
42

7512684 BOLT

BOLT

1 250 ₽
