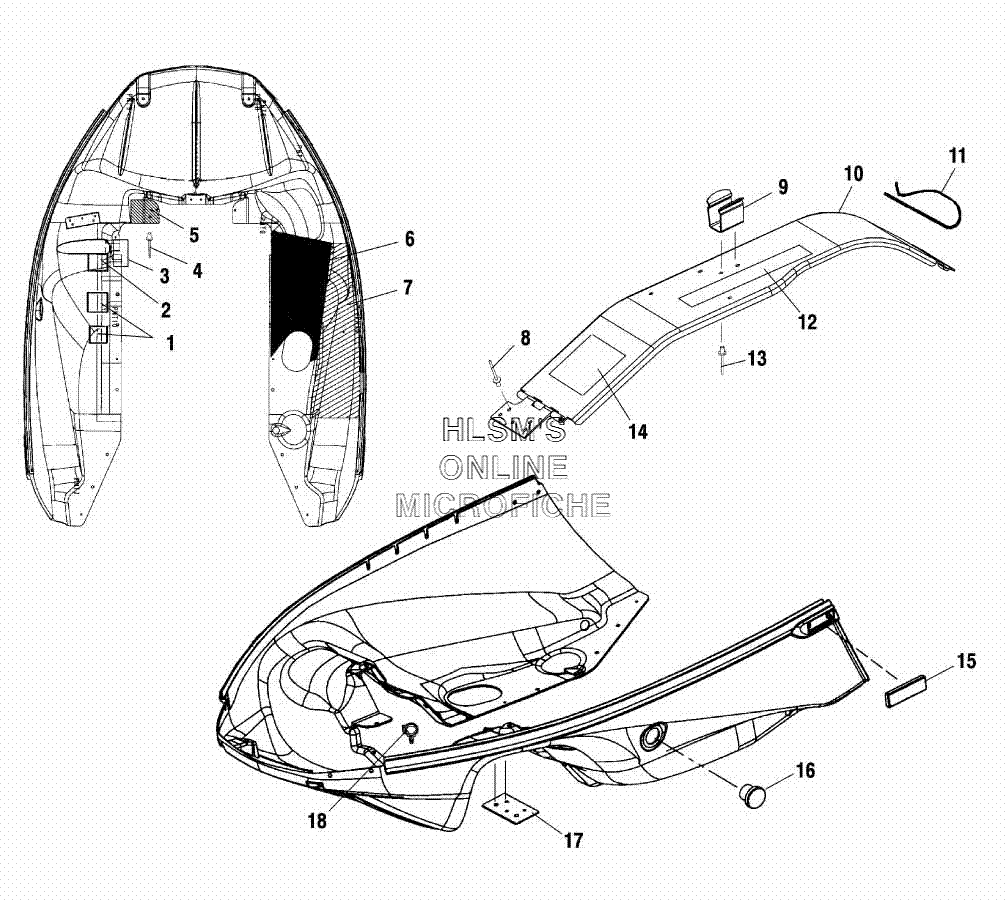

NOSEPAN ASSEMBLY #2 для Polaris 700 CLASSIC BUILT BEFORE 1/1/01 (S02ND7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17670130 SPD, CLIP, ''U'' TYPE (C, 53791, 014)SPD, CLIP, ''U'' TYPE (C, 53791, 014)
-
27080963 RETAIN ''J'' CLPRETAIN ''J'' CLP
-
35811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
47621462 RIVETRIVET
-
55812020 FOIL, TAPE, NOSEPANFOIL, TAPE, NOSEPAN
-
65812019 FOIL, TAPE (NS.PAN, LWR, RIGHT)FOIL, TAPE (NS.PAN, LWR, RIGHT)
-
75812018 FOIL, TAPE (NS.PAN, UPPER, RIGHT)FOIL, TAPE (NS.PAN, UPPER, RIGHT)
-
87621402 POP RIVETPOP RIVET
-
95222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
101013069 CLUTCH GUARD ASSY.CLUTCH GUARD ASSY.
-
117080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
127075350 DECAL 97, 99 ENG/CLUTCHDECAL 97, 99 ENG/CLUTCH
-
137621429 RIVETRIVET
-
147079334 DECAL - TROUBLESHOOTING (M-10)DECAL - TROUBLESHOOTING (M-10)
-
152670134 REFLECTOR ASSY. (AMBER)REFLECTOR ASSY. (AMBER)
-
165433926 PLUG, NOSE PAN (OBLONG)PLUG, NOSE PAN (OBLONG)
-
175211722 PLATE, BACKER, CLUTCH GUARDPLATE, BACKER, CLUTCH GUARD
-
184020139 CLIP, PLASTICCLIP, PLASTIC
