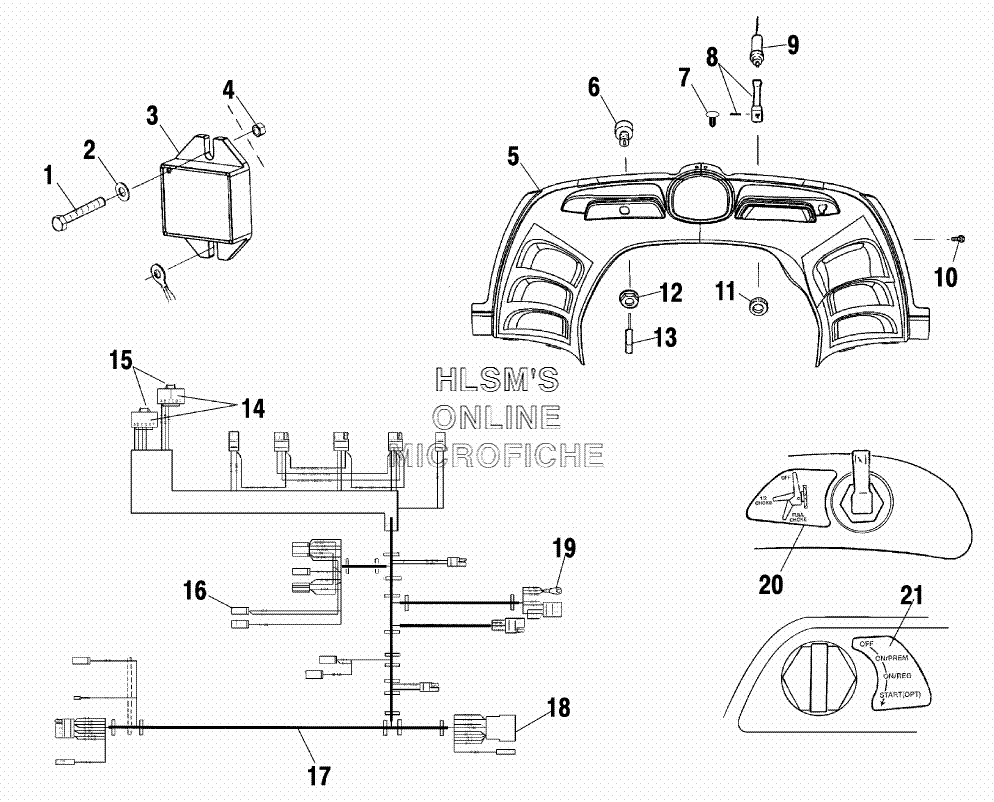

CONSOLE для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555746 WASHERWASHER
-
34010301 REGULATOR (14.3 V)REGULATOR (14.3 V)
-
47541925 NUTNUT
-
55434134 CONSOLECONSOLE
-
62201614 IGNITION KIT, SWITCHIGNITION KIT, SWITCH
-
77670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
85432943 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
97080946 CABLE, CHOKE (INCL. 8,11)CABLE, CHOKE (INCL. 8,11)
-
107515199 SCREWSCREW
-
115432944 NUT, CHOKENUT, CHOKE
-
127547035 NUT, IGNITIONNUT, IGNITION
-
135410611 KEY, IGNITION (* A, ** B ETC)KEY, IGNITION (* A, ** B ETC)
-
144010192 SOCKET, PACKARD #12047767SOCKET, PACKARD #12047767
-
154010193 HOUSING, CONNECTOR PAC #12186213HOUSING, CONNECTOR PAC #12186213
-
164020092 TERMINAL, RINGTERMINAL, RING
-
172460932 HARNESS, MAINHARNESS, MAIN
-
184020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
194020063 HOUSINGHOUSING
-
207170061 DECAL, CHOKEDECAL, CHOKE
-
217079509 DECAL, IGNITION TPSDECAL, IGNITION TPS
