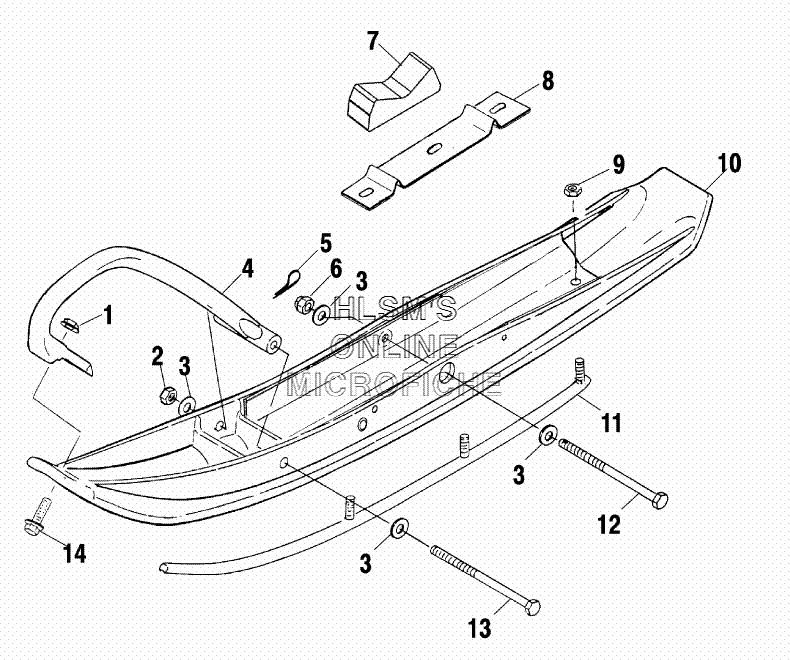

SKI ASSEMBLY для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска
-
№АртикулНазвание
-
17542321 NUT, LOCKNUT, LOCK
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
45434165-216 TOE, PLASTIC SKI (YELLOW)TOE, PLASTIC SKI (YELLOW)
-
45434165-293 TOE, PLASTIC SKI (RED)TOE, PLASTIC SKI (RED)
-
57661209 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75412018 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
97542449 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
101820667-070 COMP SKI, SHORT SADDLE (LEFT/BLACK)COMP SKI, SHORT SADDLE (LEFT/BLACK)
-
101820668-070 COMP SKI, SHORT SADDLE (RIGHT/BLACK)COMP SKI, SHORT SADDLE (RIGHT/BLACK)
-
112873277 SKAG KIT (4'')SKAG KIT (4'')
-
127512596 SCREWSCREW
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
