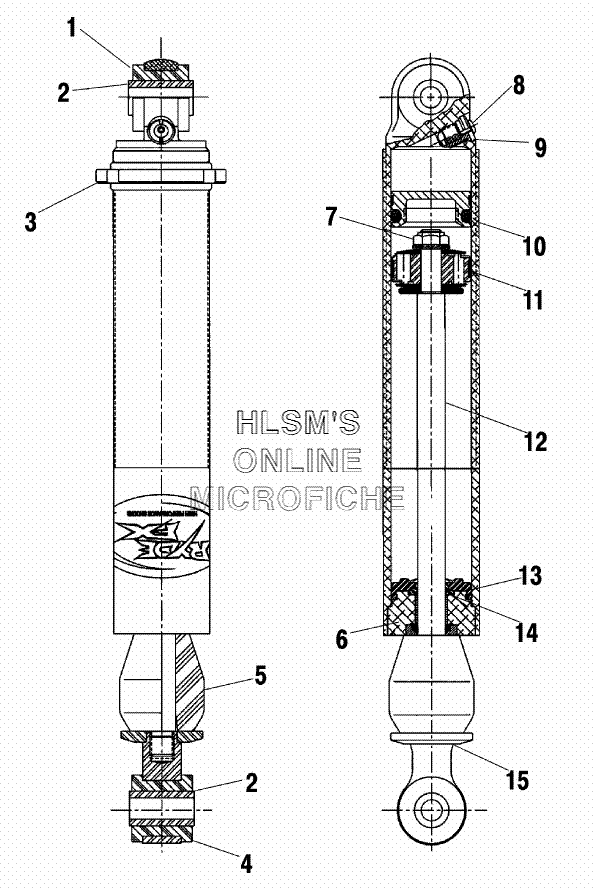

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 800 RMK F/O 156 (S02NM8CS) - 2002 года выпуска
-
№АртикулНазвание
-
1A7042059 SHOCK, IFSSHOCK, IFS
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVESLEEVE
-
31700033 SPRING, RET NUTSPRING, RET NUT
-
41700072 BUSHINGBUSHING
-
51700042 COMP, BUMPERCOMP, BUMPER
-
61700007 CYLINDER HEAD ASSY (1/2'' ROD)CYLINDER HEAD ASSY (1/2'' ROD)
-
71700057 NUTNUT
-
81700056 VALVE, SCREWVALVE, SCREW
-
91700076 PRESS-VALVE ASSY,PRESS-VALVE ASSY,
-
91700047 PRESS-VALVE O-RINGPRESS-VALVE O-RING
-
101700023 IFPIFP
-
101700032 IFP WEAR BANDIFP WEAR BAND
-
101700048 IFP-O-RINGIFP-O-RING
-
111700108 BANDED PISTON .086'' ORIFICEBANDED PISTON .086'' ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
121700025 SHAFTSHAFT
-
131700022 CAP SEALCAP SEAL
-
141700021 ROD SEALROD SEAL
-
151700010 UPPER MOUNTUPPER MOUNT
