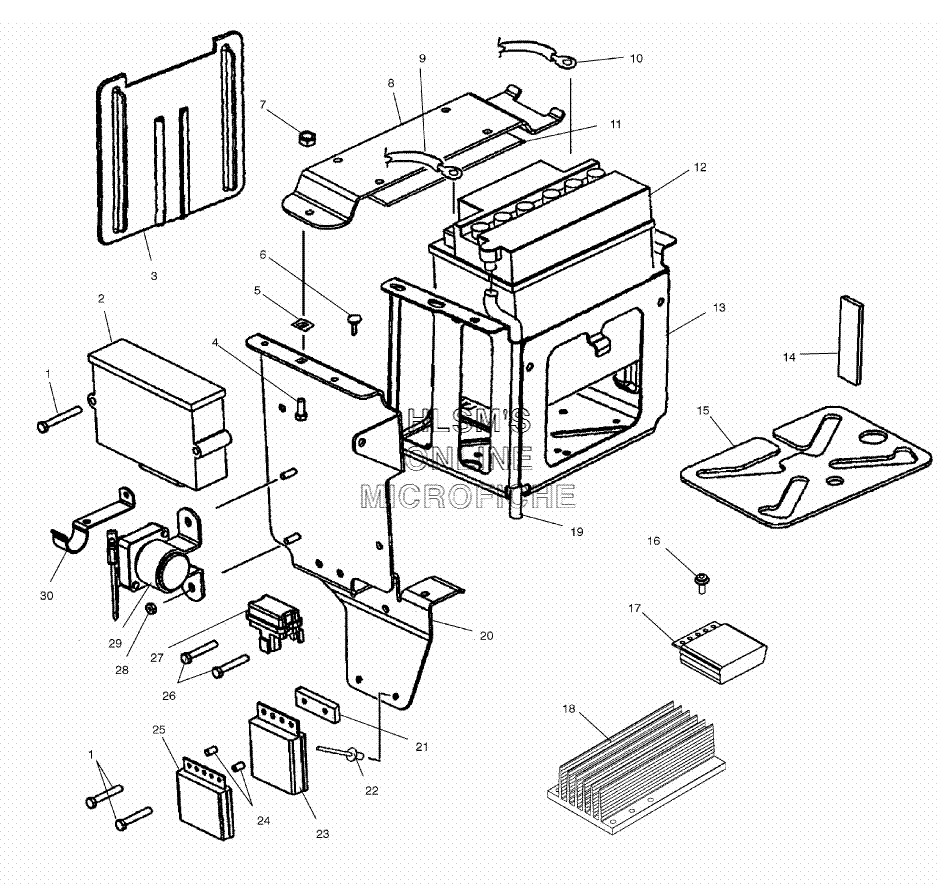

BATTERY BOX для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска
-
№АртикулНазвание
-
17517263 SCREWSCREW
-
24010428 ENGINE, CONTROLENGINE, CONTROL
-
35434659 BATTERY, RETAINERBATTERY, RETAINER
-
47512193 BOLTBOLT
-
57670021 SPEED NUTSPEED NUT
-
67517560 SCREWSCREW
-
77542153 NUT, NYLOCKNUT, NYLOCK
-
85245525 COVER, BATTERY BOXCOVER, BATTERY BOX
-
94010091 CABLE, BATTERY SOLENOIDCABLE, BATTERY SOLENOID
-
104010057 CABLE, STARTERCABLE, STARTER
-
115810290 PAD, BATTERYPAD, BATTERY
-
124010630 BATTERY (30 AMP) (TOP MOUNT)BATTERY (30 AMP) (TOP MOUNT)
-
131013932 BOX, BATTERYBOX, BATTERY
-
145811651 PAD, BATTERY SIDEPAD, BATTERY SIDE
-
155811623 PAD, BATTERYPAD, BATTERY
-
167512018 SCREWSCREW
-
174010538 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
185133411 HEAT, SINK REGULATORHEAT, SINK REGULATOR
-
195432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
201013787 BRACKET, BATTERY BOX ASSY. W/STUDSBRACKET, BATTERY BOX ASSY. W/STUDS
-
215210650 HEAT SINKHEAT SINK
-
227621432 RIVETRIVET
-
234010580 MODULE, LOADMODULE, LOAD
-
245333204 BUSHINGBUSHING
-
254010722 SWITCH, ALTERNATOR CONTROLSWITCH, ALTERNATOR CONTROL
-
267512050 SCREW W/WASHERSCREW W/WASHER
-
274010637 SWITCH, ROLL OVERSWITCH, ROLL OVER
-
287541925 NUTNUT
-
293086236 SWITCH, MAGNETICSWITCH, MAGNETIC
-
305246171 BRACKET, HOSE SUPPORTBRACKET, HOSE SUPPORT
