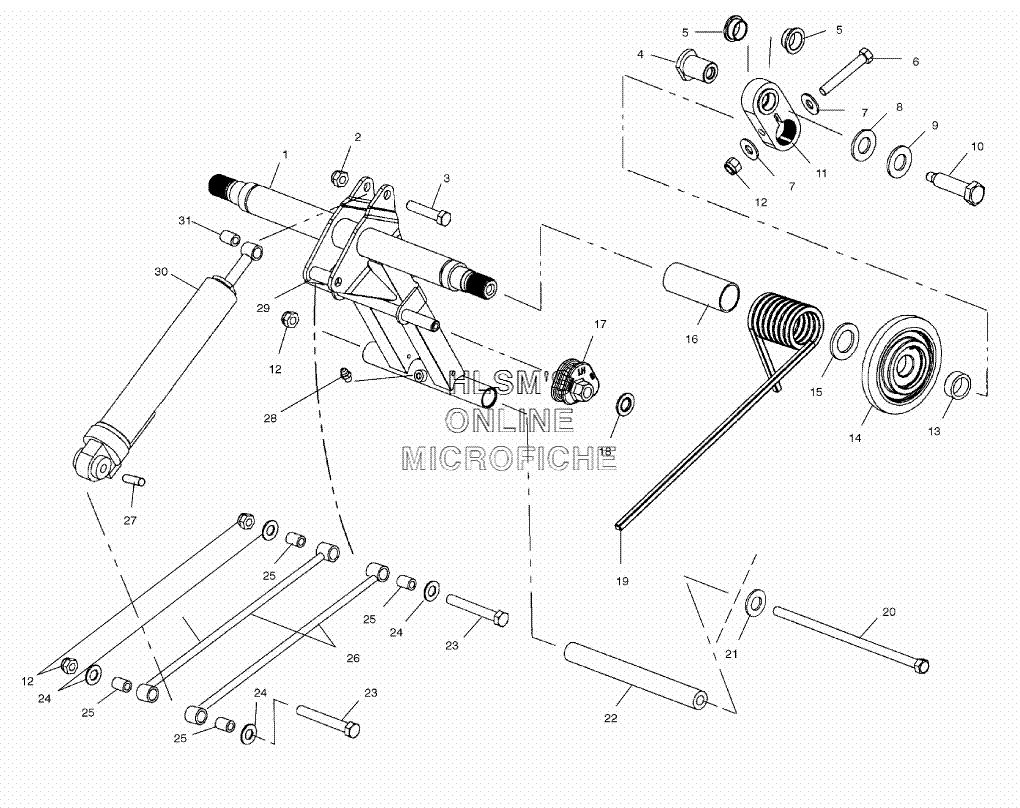

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска
-
№АртикулНазвание
-
11541561-067 WELD, REAR TORQUE ARM (BLACK)WELD, REAR TORQUE ARM (BLACK)
-
27542411 NUT LOCKNUT LOCK
-
37515540 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
53514331 BUSHING, ARMBUSHING, ARM
-
67515415 BOLTBOLT
-
77556188 WASHER, FLATWASHER, FLAT
-
87555893 WASHERWASHER
-
97552603 WASHERWASHER
-
107517435 BOLTBOLT
-
111541461 ARM ASSY., REAR TORQUE ARM (INCL. 5)ARM ASSY., REAR TORQUE ARM (INCL. 5)
-
127542439 NUT, NYLOKNUT, NYLOK
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590343 CARRIER WHEEL ASSY.CARRIER WHEEL ASSY.
-
157555871 WASHER, REVERSEWASHER, REVERSE
-
165431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175434589 ROLLER, SPRING (LEFT)ROLLER, SPRING (LEFT)
-
175434590 ROLLER, SPRING (RIGHT)ROLLER, SPRING (RIGHT)
-
187080394 CLIPCLIP
-
197041942-067 SPRING, TORSION (LEFT) (OPT) (.375/77)SPRING, TORSION (LEFT) (OPT) (.375/77)
-
197041943-067 SPRING, TORSION (RIGHT) (OPT) (.375/77)SPRING, TORSION (RIGHT) (OPT) (.375/77)
-
197041940-067 SPRING, TORSION (LEFT/BLACK) (STD) (.405/77)SPRING, TORSION (LEFT/BLACK) (STD) (.405/77)
-
197041941-067 SPRING, TORSION (RIGHT/BLACK) (STD) (.405/77)SPRING, TORSION (RIGHT/BLACK) (STD) (.405/77)
-
207517232 SCREWSCREW
-
217555806 WASHERWASHER
-
225334025 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 SHOCK ROD (BLACK)SHOCK ROD (BLACK)
-
275333905 SLEEVESLEEVE
-
287080424 FITTING, LUBEFITTING, LUBE
-
295333904 SPACERSPACER
-
307042138 SHOCK, REAR TORQUESHOCK, REAR TORQUE
-
315010422 BUSHINGBUSHING
