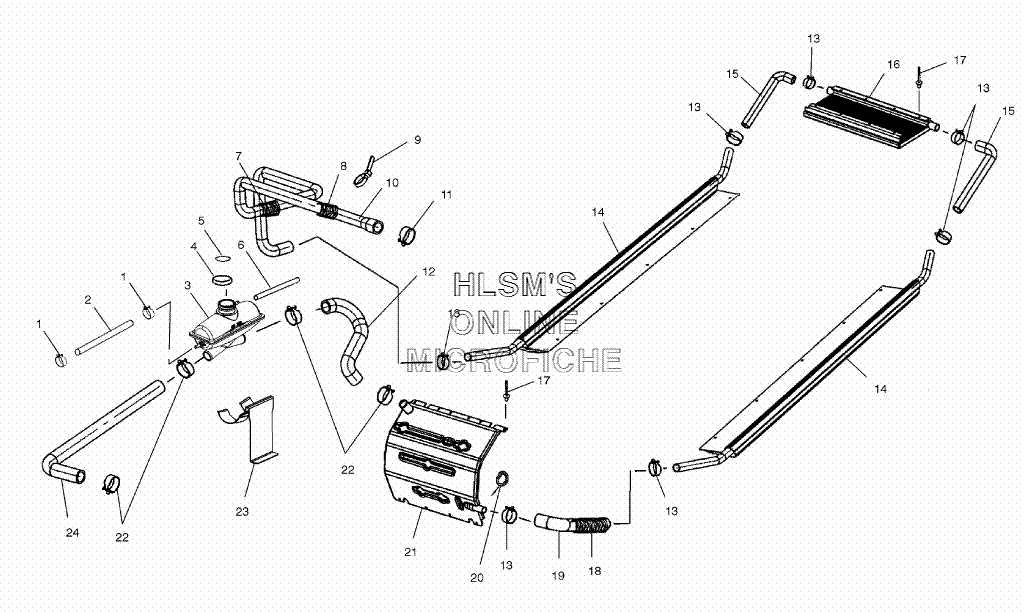

COOLING SYSTEM для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска
-
№АртикулНазвание
-
17080003 CLAMP, HOSECLAMP, HOSE
-
25521132 HOSE, IMPULSEHOSE, IMPULSE
-
32520319 WELD, COOLANT BOTTLEWELD, COOLANT BOTTLE
-
42511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
57170063 DECAL, WATER BOTTLE CAPDECAL, WATER BOTTLE CAP
-
68450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
75521497 TUBE , CONVOLUTED (1''X6'')TUBE , CONVOLUTED (1''X6'')
-
85521242 TUBING, CONVOL (1''X2.5'')TUBING, CONVOL (1''X2.5'')
-
97080138 STRAP PANDUITSTRAP PANDUIT
-
105412142 HOSE, ENGINE OUT COOLER (RIGHT)HOSE, ENGINE OUT COOLER (RIGHT)
-
117080843 SPRINGBAND, CLAMP (BROWN)SPRINGBAND, CLAMP (BROWN)
-
125412198 HOSE, CENTER COOLER/BOTTLEHOSE, CENTER COOLER/BOTTLE
-
137080841 SPRINGBAND, CLAMP (GREEN)SPRINGBAND, CLAMP (GREEN)
-
141240125 WELD, RUNNING BOARD COOLER (LEFT)WELD, RUNNING BOARD COOLER (LEFT)
-
141240126 WELD, RUNNING BOARD COOLER (RIGHT)WELD, RUNNING BOARD COOLER (RIGHT)
-
155412143 HOSE, SIDE COOLER/REAR COOLERHOSE, SIDE COOLER/REAR COOLER
-
161240099 WELD, EXCHANGER, REAR CLOSEOFFWELD, EXCHANGER, REAR CLOSEOFF
-
177661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
185521602 TUBING, CONVOLUTED (1''X4.00'')TUBING, CONVOLUTED (1''X4.00'')
-
195412083 HOSE, GRIPPER/CENTER COOLERHOSE, GRIPPER/CENTER COOLER
-
205810291 SPACER, RUBBERSPACER, RUBBER
-
211240128 WELD, CENTER COOLER (2 OUTLET)WELD, CENTER COOLER (2 OUTLET)
-
227080844 SPRINGBAND, CLAMP (BLACK)SPRINGBAND, CLAMP (BLACK)
-
235246194 BRACKET, COOLANT BOTTLEBRACKET, COOLANT BOTTLE
-
245412183 HOSE, BOTTLE/ENGINE INHOSE, BOTTLE/ENGINE IN
