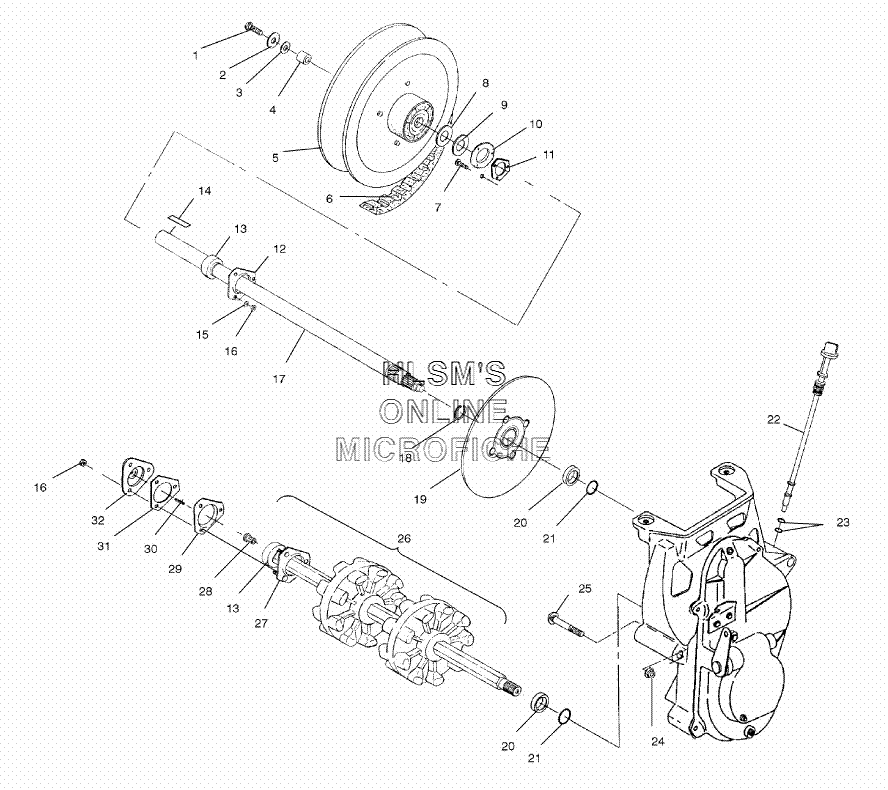

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020913 SPACERSPACER
-
51321925 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
63211070 BELT, DRIVEBELT, DRIVE
-
77512377 BOLTBOLT
-
85020837 SPACERSPACER
-
97556509 WASHER, SPECIALWASHER, SPECIAL
-
105241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
107080561 FITTING, LUB/VENFITTING, LUB/VEN
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
125222751 FLANGETTEFLANGETTE
-
133514525 BEARINGBEARING
-
147721128 KEYKEY
-
157558402 WASHER, STEELWASHER, STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC ASSY.BRAKE DISC ASSY.
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
225431419 DIPSTICK ASSY.DIPSTICK ASSY.
-
235410675 O-RINGO-RING
-
247542423 NUTNUT
-
257515428 BOLTBOLT
-
261590283 DRIVESHAFT ASSY. W/BEARING (INCL. 27-28)DRIVESHAFT ASSY. W/BEARING (INCL. 27-28)
-
271012945 FLANGETTE ASSY. W/SCREWSFLANGETTE ASSY. W/SCREWS
-
283280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
295243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
303280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
315830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
323280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
