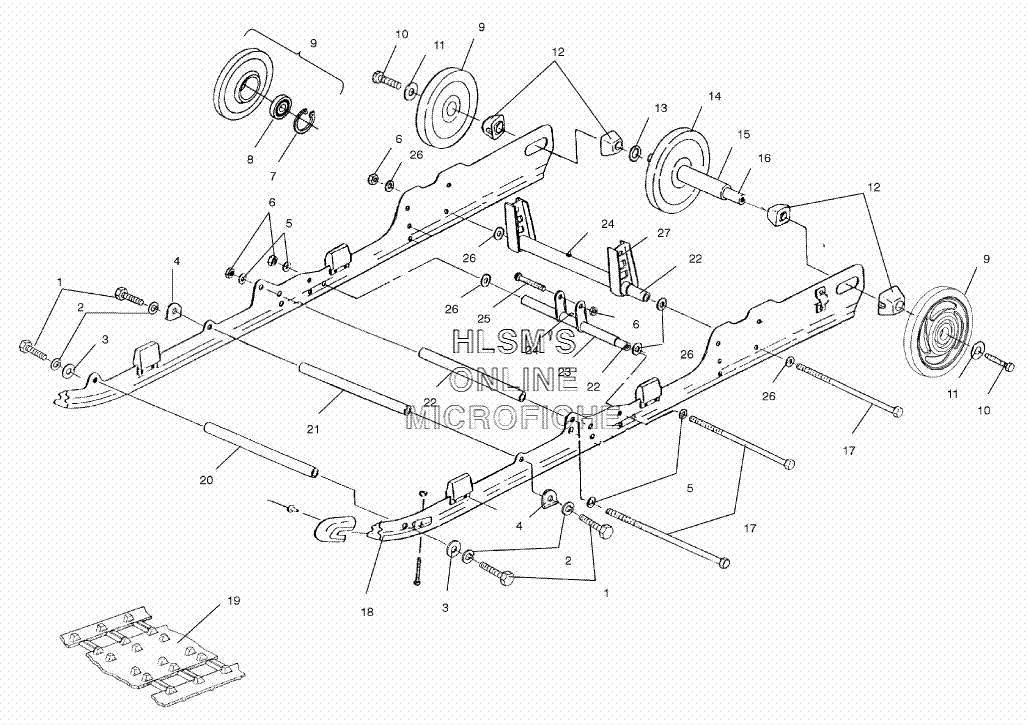

SUSPENSION - REAR TRACK для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517247 SCREWSCREW
-
27552603 WASHERWASHER
-
37555923 WASHERWASHER
-
45241443 BRACKET, SHAFT SUPPORTBRACKET, SHAFT SUPPORT
-
57555806 WASHERWASHER
-
67542411 NUT LOCKNUT LOCK
-
77710444 RING, RETAININGRING, RETAINING
-
83514012 BEARINGBEARING
-
91590303-312 WHEEL IDLER ASSY. (BLUE)WHEEL IDLER ASSY. (BLUE)
-
107517731 BOLTBOLT
-
117556130 WASHERWASHER
-
125432535 SPACER, IDLERSPACER, IDLER
-
137555918 BUSHINGBUSHING
-
141594087 WHEEL ASSY., PLAINWHEEL ASSY., PLAIN
-
155333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
165020744 SHAFT, IDLERSHAFT, IDLER
-
177517353 SCREWSCREW
-
185521452 SLIDER (WHITE)SLIDER (WHITE)
-
195411171 TACK (133''X.82)TACK (133''X.82)
-
195241473 CLIP, SLIDECLIP, SLIDE
-
195241474 CLIP, GUIDECLIP, GUIDE
-
205020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
215020724 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
225333404 SHAFTSHAFT
-
231541001-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
247080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
257515472 BOLTBOLT
-
267555893 WASHERWASHER
-
271541241-067 ARM, PIVOT (REAR)ARM, PIVOT (REAR)
