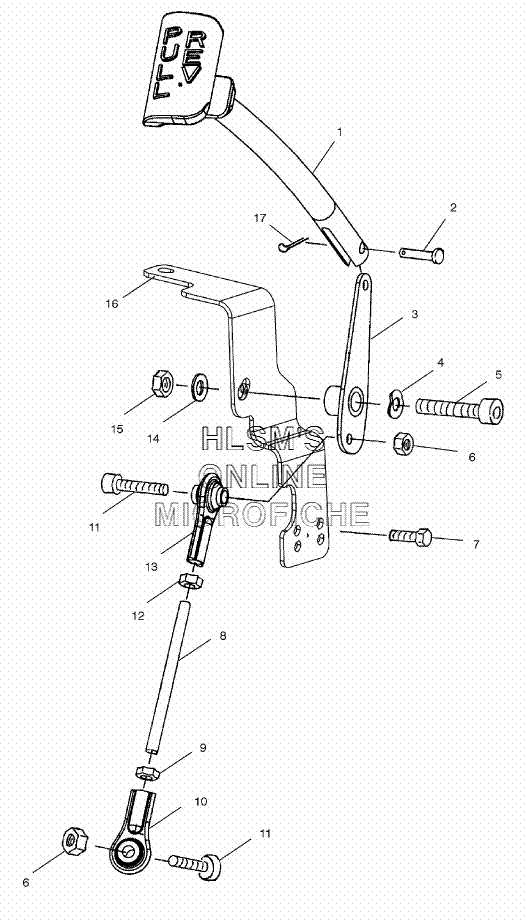

REVERSE LINKAGE для Polaris TRAIL TOURING (S02ST5BS) - 2002 года выпуска
-
№АртикулНазвание
-
15432960 LEVER, SHIFTLEVER, SHIFT
-
27661843 CLEVISCLEVIS
-
31341292 ACTUATORACTUATOR
-
47556060 WASHER, WAVEWASHER, WAVE
-
57517607 BOLT, SHOULDERBOLT, SHOULDER
-
67542101 NUT HEXAGON, LOCKNUT HEXAGON, LOCK
-
77517386 SCREWSCREW
-
85010473 ROD, THREADEDROD, THREADED
-
97542129 NUTNUT
-
107061029 ROD ENDROD END
-
117512164 SCREWSCREW
-
127547088 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
137061039 ROD, END (LEFT)ROD, END (LEFT)
-
147555806 WASHERWASHER
-
157542402 NUT FLEX LOCNUT FLEX LOC
-
165243736 BRACKET, SHIFT ACTUATORBRACKET, SHIFT ACTUATOR
-
177661010 PIN, COTTERPIN, COTTER
