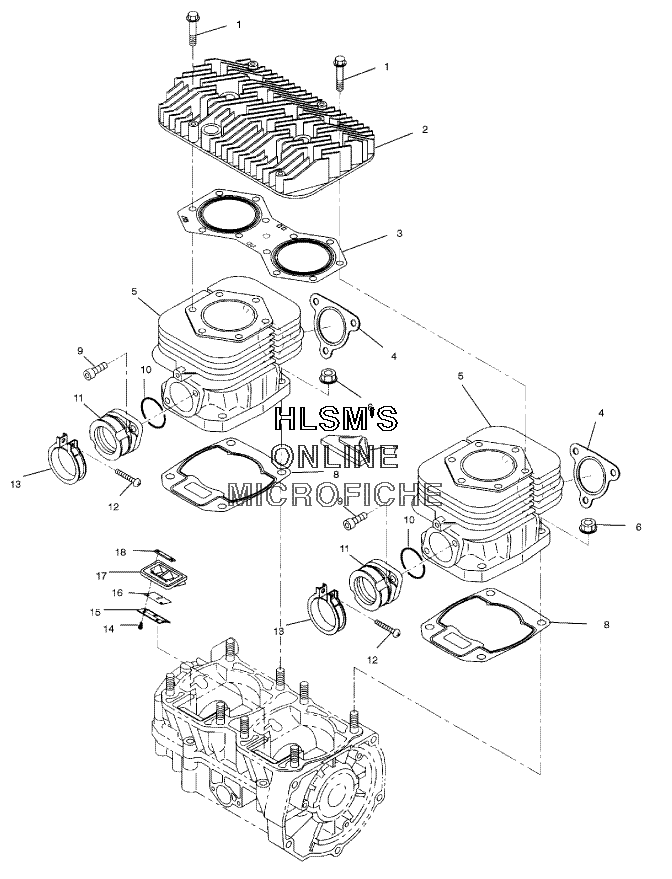

CYLINDER ASSEMBLY для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23087175 HEAD CYLINDERHEAD CYLINDER
-
33085668 GASKET, HEADGASKET, HEAD
-
43085714 GASKET, EXHAUSTGASKET, EXHAUST
-
53087174 CYLINDERCYLINDER
-
63082911 NUT FLANGENUT FLANGE
-
73085692 COVER, CYL.BAFFLECOVER, CYL.BAFFLE
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
103085619 O-RINGO-RING
-
113085670 ADAPTER ASSY (INCL. 10)ADAPTER ASSY (INCL. 10)
-
123081497 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
133083166 ADAPTER BAND ASSY (INCL. 12)ADAPTER BAND ASSY (INCL. 12)
-
143085717 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153086387 STOPPERSTOPPER
-
163085715 VALVE, REEDVALVE, REED
-
173086386 VALVE ASSY, REED (INCL. 14 18)VALVE ASSY, REED (INCL. 14 18)
-
183086388 PLATEPLATE
