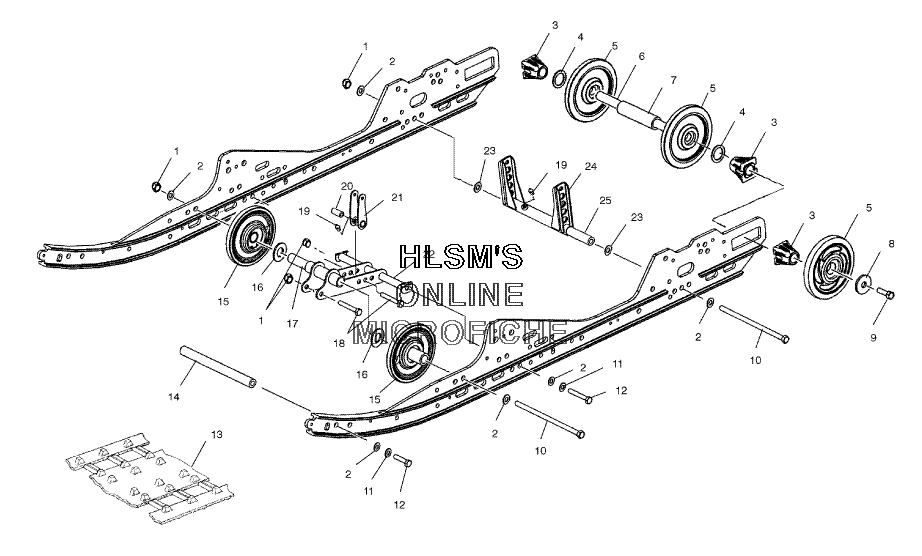

SUSPENSION/TRACK для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
35432535 SPACER, IDLERSPACER, IDLER
-
47555918 BUSHINGBUSHING
-
51594087 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
57710444 RING, RETAININGRING, RETAINING
-
53514012 BEARINGBEARING
-
65132066 SHAFT IDLERSHAFT IDLER
-
75333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
87556130 WASHERWASHER
-
97517731 BOLTBOLT
-
107517921 SCREW, HEXAGONSCREW, HEXAGON
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127517247 SCREWSCREW
-
135411379 TRACK, 121"X15 .82 LUGTRACK, 121"X15 .82 LUG
-
135222840 CLIP, GUIDECLIP, GUIDE
-
145020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
151541642 WHEEL ASSY, 5.62 W/HOLEWHEEL ASSY, 5.62 W/HOLE
-
167556301 BUSHINGBUSHING
-
175133232 SHAFTSHAFT
-
187515417 SCREWSCREW
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
205133233 BUSHINGBUSHING
-
211541638-067 WELD SHOCK PIVOT ARM (BLACK)WELD SHOCK PIVOT ARM (BLACK)
-
221541711-067 WELD MOUNT, SHOCK (BLACK)WELD MOUNT, SHOCK (BLACK)
-
237555893 WASHER, FLATWASHER, FLAT
-
241541713-067 WELD REAR PIVOT ARM (BLACK)WELD REAR PIVOT ARM (BLACK)
-
255334026 SHAFT, ANODIZESHAFT, ANODIZE
