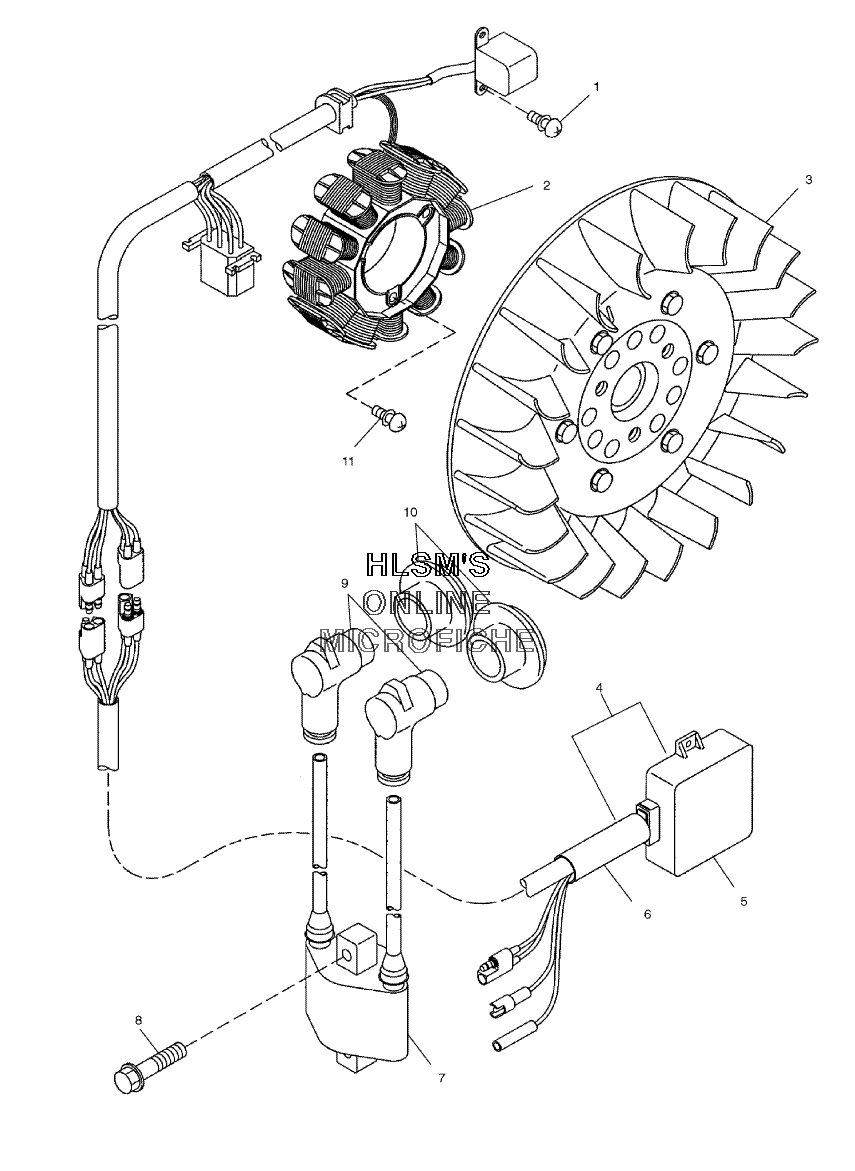

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23087187 STATOR ASSYSTATOR ASSY
-
33087188 FLYWHEEL ASSYFLYWHEEL ASSY
-
43087280 CDI UNITCDI UNIT
-
53087281 CDI UNITCDI UNIT
-
63087282 UNIT HARNESSUNIT HARNESS
-
73087214 IGNITION COIL ASSY (INCL. 9)IGNITION COIL ASSY (INCL. 9)
-
73087191 COIL IGNITIONCOIL IGNITION
-
83084177 BOLT, FLANGEBOLT, FLANGE
-
93086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
103085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
113085697 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
