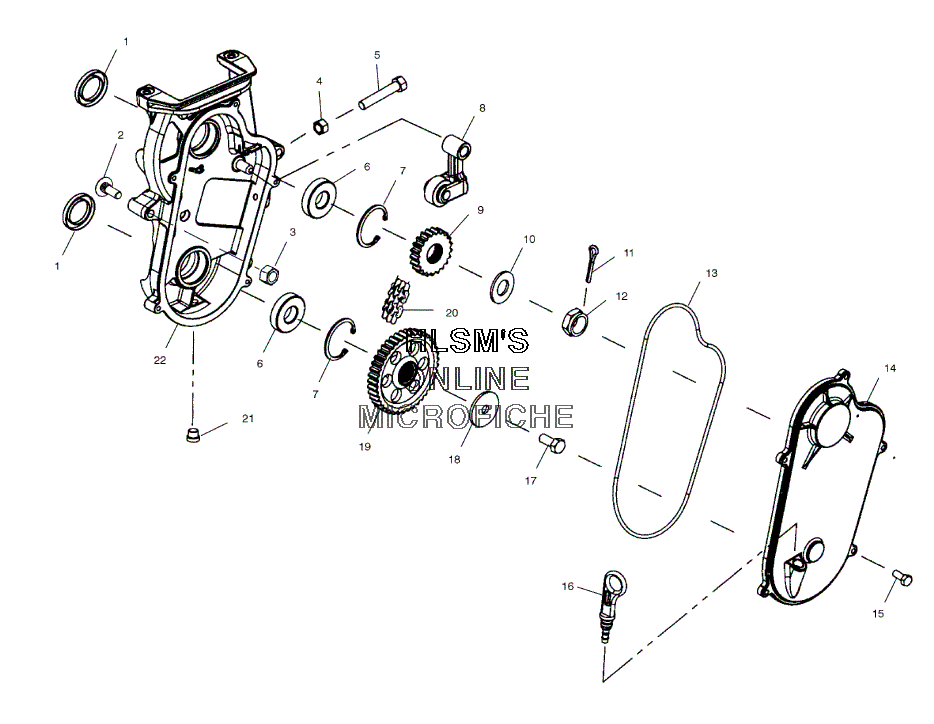

CHAINCASE ASSEMBLY для Polaris 500 XC EDGE F/O (S03NP5CS) - 2003 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515477 SCREW, CARRIAGESCREW, CARRIAGE
-
37542451 NUT, NYLOKNUT, NYLOK
-
45132237 NUT, CHAIN ADJUSTER 3/8-16NUT, CHAIN ADJUSTER 3/8-16
-
57512470 SCREWSCREW
-
63514309 BEARING, BALLBEARING, BALL
-
77718406 RING, RETAININGRING, RETAINING
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
85630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
93221098 SPROCKET, SPLINE 15 (22T) (3/4W)SPROCKET, SPLINE 15 (22T) (3/4W)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661401 COTTER PINCOTTER PIN
-
127542811 NUTNUT
-
135411497 GASKET, O-RINGGASKET, O-RING
-
145132368 COVER, CHNCASE 7.92 CD ALUMINUMCOVER, CHNCASE 7.92 CD ALUMINUM
-
157512242 SCREWSCREW
-
161332250 DIPSTICK, ASSY W/MAGNET, EDGEDIPSTICK, ASSY W/MAGNET, EDGE
-
177517979 SCREWSCREW
-
187571618 WASHER, SPRINGWASHER, SPRING
-
193222099 SPROCKET, SPLINE (15/40T)SPROCKET, SPLINE (15/40T)
-
203221109 CHAIN, HYVO.74P (3/4W)CHAIN, HYVO.74P (3/4W)
-
217052115 PLUGPLUG
-
225132773 CHAINCASE, 7.92 CD ALUMINUMCHAINCASE, 7.92 CD ALUMINUM
