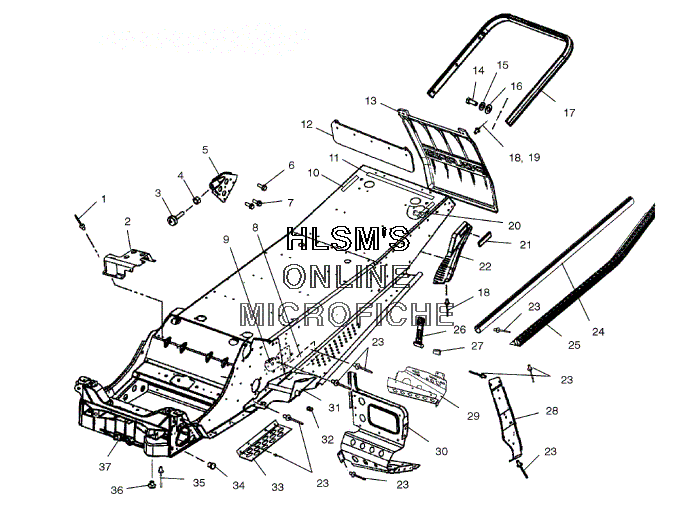

FRAME - CHASSIS для Polaris 500 XC EDGE F/O (S03NP5CS) - 2003 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25246330 BRACKET, OIL TANK/HOSE SUPPORTBRACKET, OIL TANK/HOSE SUPPORT
-
33021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
47542404 NUTNUT
-
51013379 WELD, TOQUE STOP S44WELD, TOQUE STOP S44
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
105812290 GASKET, SEAT BASEGASKET, SEAT BASE
-
115812360 GASKET, SEAT BASE (1/4")GASKET, SEAT BASE (1/4")
-
125812430 BACKER, SNOW FLAP (IF BUILT AFTER 4/29/02)BACKER, SNOW FLAP (IF BUILT AFTER 4/29/02)
-
135433521-1038 FLAP, SNOW EDGE (BLACK W/CHROME) (IF BUILT BEFORE 4/29/02)FLAP, SNOW EDGE (BLACK W/CHROME) (IF BUILT BEFORE 4/29/02)
-
135434847-1038 FLAP, SNO LONG (BLACK/WHITE) (IF BUILT AFTER 4/29/02)FLAP, SNO LONG (BLACK/WHITE) (IF BUILT AFTER 4/29/02)
-
135434860 FLAP, SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)FLAP, SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)
-
147512240 BOLTBOLT
-
157552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167558301 WASHER, FLATWASHER, FLAT
-
172632165-309 BUMPER, ASSY (REAR)BUMPER, ASSY (REAR)
-
172632165-216 BUMPER, ASSY (REAR) (SCR YELLOW)BUMPER, ASSY (REAR) (SCR YELLOW)
-
187621472 RIVETRIVET
-
197621418 POP RIVET (IF BUILT AFTER 4/29/02)POP RIVET (IF BUILT AFTER 4/29/02)
-
207517441 SCREWSCREW
-
212670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
222632443-070 SNOWSKIRT/REFLECTOR, ASSY (LEFT/BLACK)SNOWSKIRT/REFLECTOR, ASSY (LEFT/BLACK)
-
222632444-070 SNOWSKIRT/REFLECTOR, ASSY (RIGHT/BLACK)SNOWSKIRT/REFLECTOR, ASSY (RIGHT/BLACK)
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
245245118 BRACE, TUNNEL ROLL (STD MODELS)BRACE, TUNNEL ROLL (STD MODELS)
-
265433150 STRAPSTRAP
-
275812352 PAD, CLUTCH GUARDPAD, CLUTCH GUARD
-
285246310 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
285246311 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
295245457 MOUNT, CONSOLE TOE CLIP (LEFT)MOUNT, CONSOLE TOE CLIP (LEFT)
-
295245458 MOUNT, CONSOLE TOE CLIP (RIGHT)MOUNT, CONSOLE TOE CLIP (RIGHT)
-
305245288 FOOTREST .080 (LEFT)FOOTREST .080 (LEFT)
-
305242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
312202059 MOUNT, KIT TRAILING ARM (LEFT)MOUNT, KIT TRAILING ARM (LEFT)
-
312202060 MOUNT, KIT TRAILING ARM (RIGHT)MOUNT, KIT TRAILING ARM (RIGHT)
-
335245836 GUARD, BELT EDGE W/BENDGUARD, BELT EDGE W/BEND
-
347080416 PLUG, HOLEPLUG, HOLE
-
357661639 RIVETRIVET
-
367081076 PLUG, HOLE 1.25PLUG, HOLE 1.25
-
375132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
-
371013778-309 CHASSIS, ASSY SERVICE EDGE NATURALCHASSIS, ASSY SERVICE EDGE NATURAL
