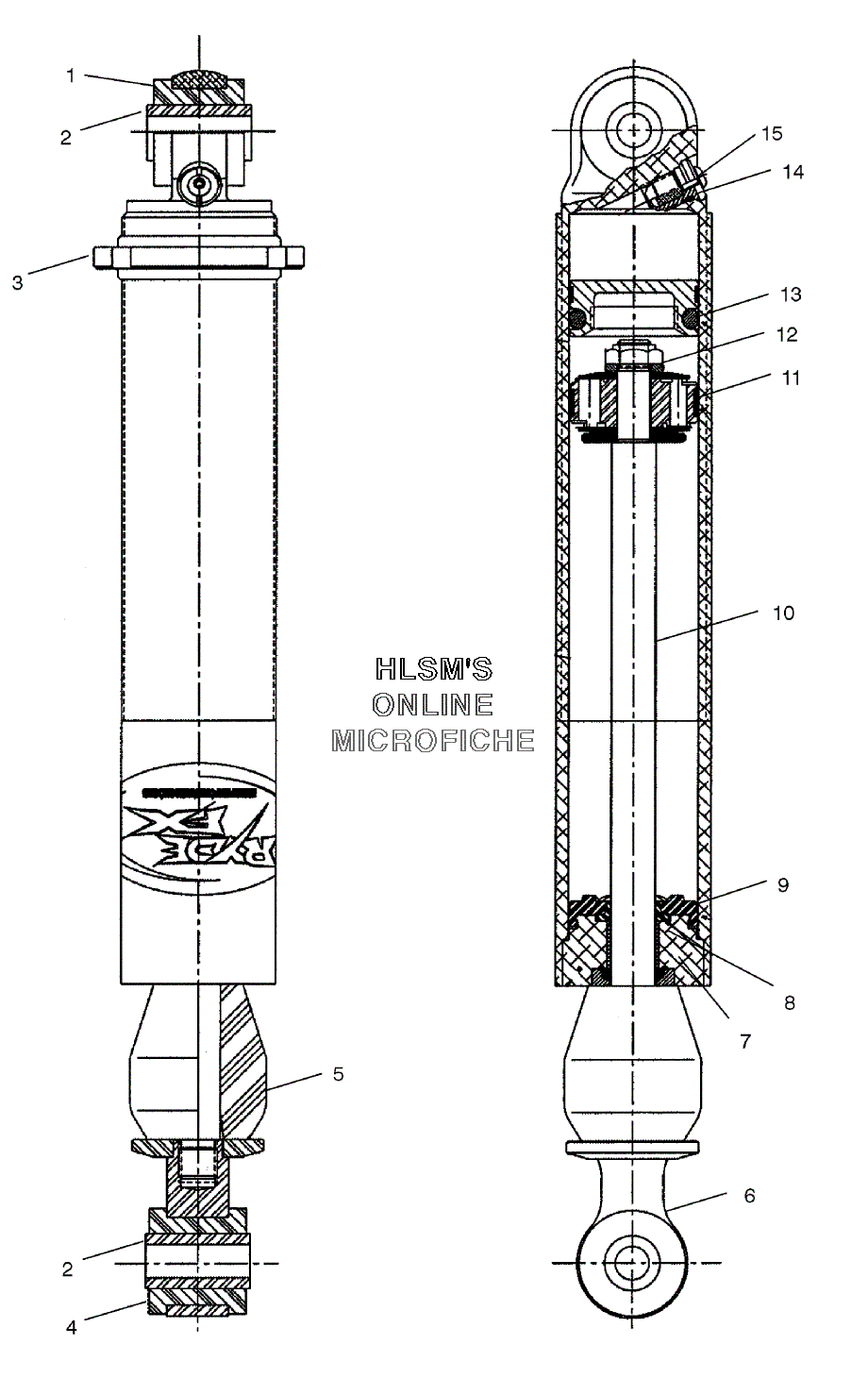

SUSPENSION - RYDE FX - IFS SHOCK для Polaris 500 XC EDGE F/O (S03NP5CS) - 2003 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVESLEEVE
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700072 BUSHINGBUSHING
-
51700042 COMP, BUMPERCOMP, BUMPER
-
61700010 UPPER MOUNTUPPER MOUNT
-
71700007 CYLINDER HEAD ASSY (1/2" ROD)CYLINDER HEAD ASSY (1/2" ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFTSHAFT
-
111700109 BANDED, PISTON (.094")BANDED, PISTON (.094")
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 WASHER (TO) (OUTER)WASHER (TO) (OUTER)
-
111700078 BACK, WASHER (UPPER)BACK, WASHER (UPPER)
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700076 PRESS, VALVE ASSYPRESS, VALVE ASSY
-
141700047 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
151700056 VALVE SCREWVALVE SCREW
-
157041976 SHOCK, IFS IFP ALUMINUMSHOCK, IFS IFP ALUMINUM
-
152200618 VALVE PISTON, KITVALVE PISTON, KIT
