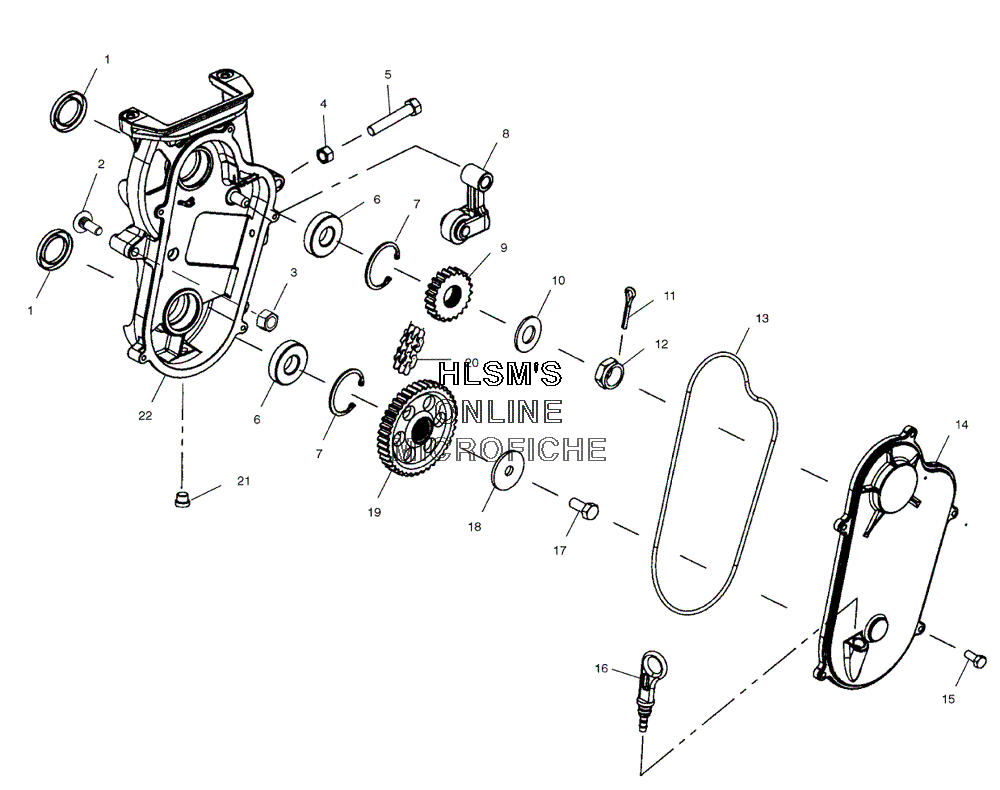

CHAINCASE ASSEMBLY для Polaris 500 XC SP EDGE M-10 F/O (S03NF5CS) - 2003 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515477 SCREW, CARRIAGESCREW, CARRIAGE
-
37542451 NUT, NYLOKNUT, NYLOK
-
45132237 NUT CHAIN ADJUSTER (3/8-16)NUT CHAIN ADJUSTER (3/8-16)
-
57512470 SCREWSCREW
-
63514309 BEARING, BALLBEARING, BALL
-
77718406 RING, RETAININGRING, RETAINING
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
85630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
93221098 SPROCKET, 22T, 3/4W, 15 SPL, HV, PMSPROCKET, 22T, 3/4W, 15 SPL, HV, PM
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661401 PIN, COTTERPIN, COTTER
-
127542811 NUTNUT
-
135411497 GASKET, O-RINGGASKET, O-RING
-
145132368 CVR, CHNCASE, 7.92 CD, ALUMINUMCVR, CHNCASE, 7.92 CD, ALUMINUM
-
157512242 SCREWSCREW
-
161332250 DIPSTICK ASSY, W/MAGNET, EDGEDIPSTICK ASSY, W/MAGNET, EDGE
-
177517979 SCREW, HEXAGON HEAD NYLONSCREW, HEXAGON HEAD NYLON
-
187571618 WASHER, SPRINGWASHER, SPRING
-
193222099 SPROCKET, 40T, 15T SPL, HYVO, PM (500)SPROCKET, 40T, 15T SPL, HYVO, PM (500)
-
203221109 CHAIN, HYVO.74P, 3/4WCHAIN, HYVO.74P, 3/4W
-
217052115 PLUGPLUG
-
225132773 CHAINCASE-7.92 CD, ALUMINUMCHAINCASE-7.92 CD, ALUMINUM
