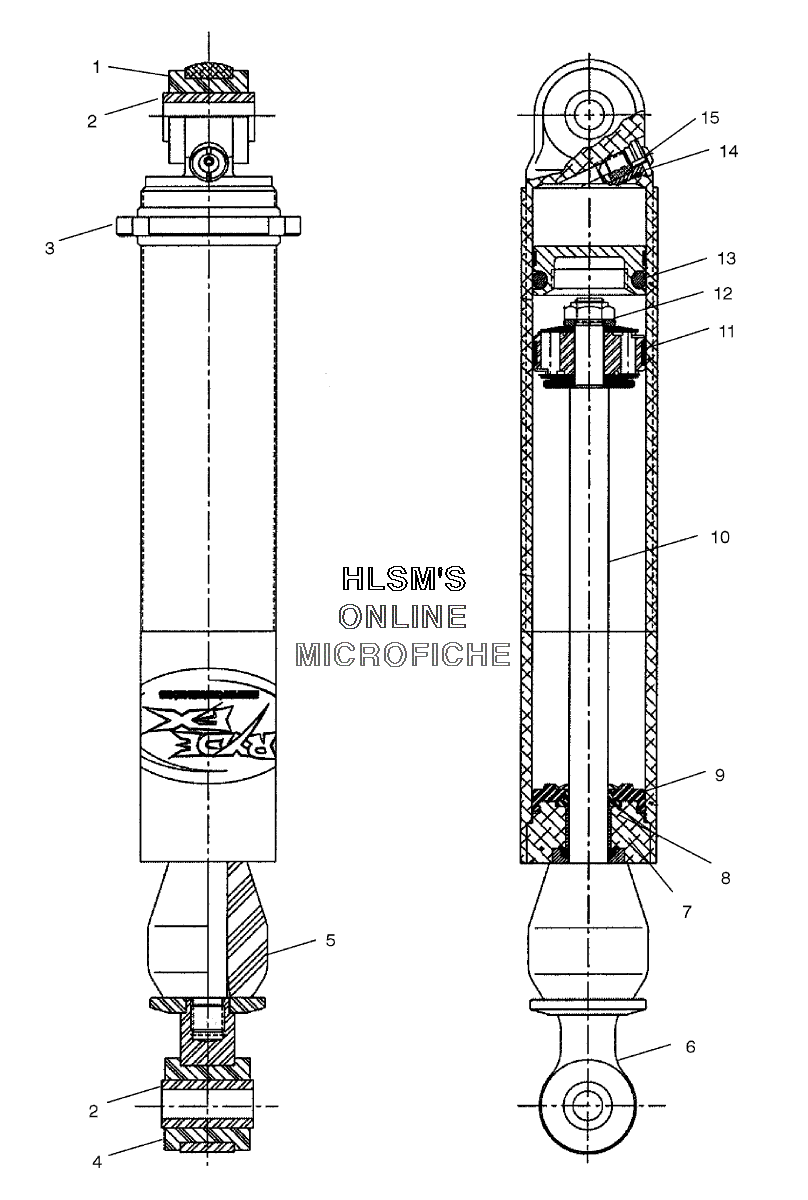

SUSPENSION - RYDE FX - IFS SHOCK для Polaris 500 XC SP EDGE M-10 F/O (S03NF5CS) - 2003 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVESLEEVE
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700010 MOUNT (UPPER)MOUNT (UPPER)
-
71700007 CYL HEAD ASSY(1/2" ROD)CYL HEAD ASSY(1/2" ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFT (1/2"DIAX7.88"L)SHAFT (1/2"DIAX7.88"L)
-
111700109 BANDED PISTON, .094" ORIFICEBANDED PISTON, .094" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP-O-RINGIFP-O-RING
-
141700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
141700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
151700056 VALVE SCREWVALVE SCREW
-
157041976 SHOCK, IFS, IFP, ALUMINUM (11X16)SHOCK, IFS, IFP, ALUMINUM (11X16)
-
152200618 VALVE PISTON KITVALVE PISTON KIT
