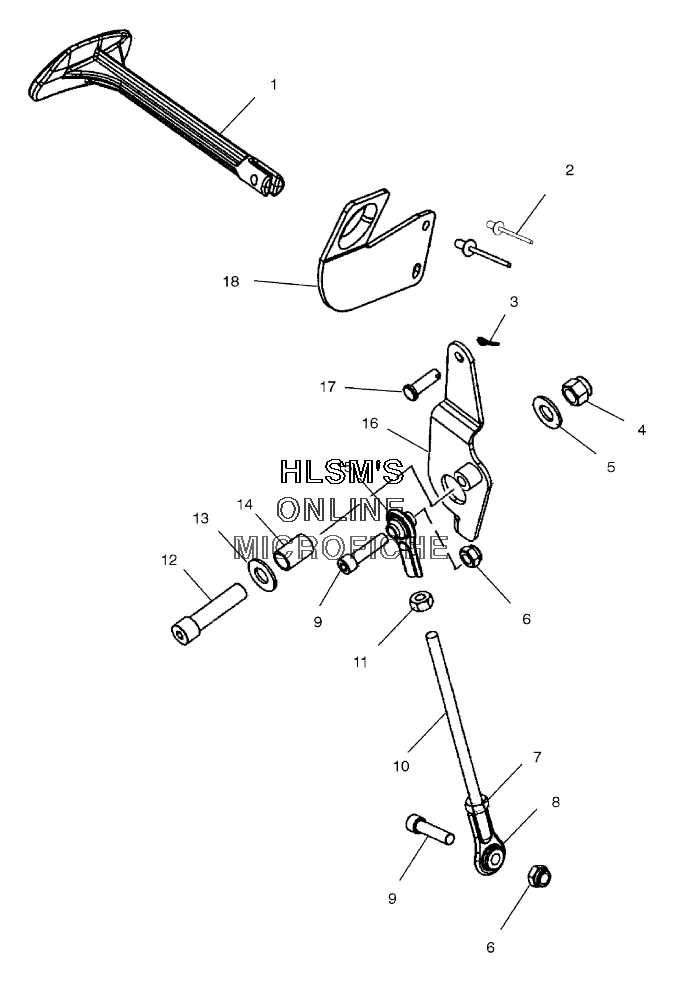

SHIFT - REVERSE MODELS для Polaris 500 XC SP EDGE M-10 F/O (S03NF5CS) - 2003 года выпуска
-
№АртикулНазвание
-
15434142 HANDLE, REVERSE, SRPHANDLE, REVERSE, SRP
-
27661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
37661010 PIN, COTTERPIN, COTTER
-
47542439 NUT, NYLOKNUT, NYLOK
-
57555933 WASHERWASHER
-
67542122 NUT, NYLOKNUT, NYLOK
-
77542129 NUTNUT
-
87061097 ROD END (RIGHT) (1/4-28X.59)ROD END (RIGHT) (1/4-28X.59)
-
97512163 BOLTBOLT
-
105132361 ROD, THREADEDROD, THREADED
-
117547088 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
127515415 SCREWSCREW
-
137555806 WASHER, FLATWASHER, FLAT
-
145334131 BUSHINGBUSHING
-
157061030 ROD END (LEFT) (1/4-28X.59)ROD END (LEFT) (1/4-28X.59)
-
161341429 WELD-SHIFT ACTUATORWELD-SHIFT ACTUATOR
-
177661843 PIN-CLEVISPIN-CLEVIS
-
185245707 BRACKET SHIFT LEVER, GUIDE, SRPBRACKET SHIFT LEVER, GUIDE, SRP
