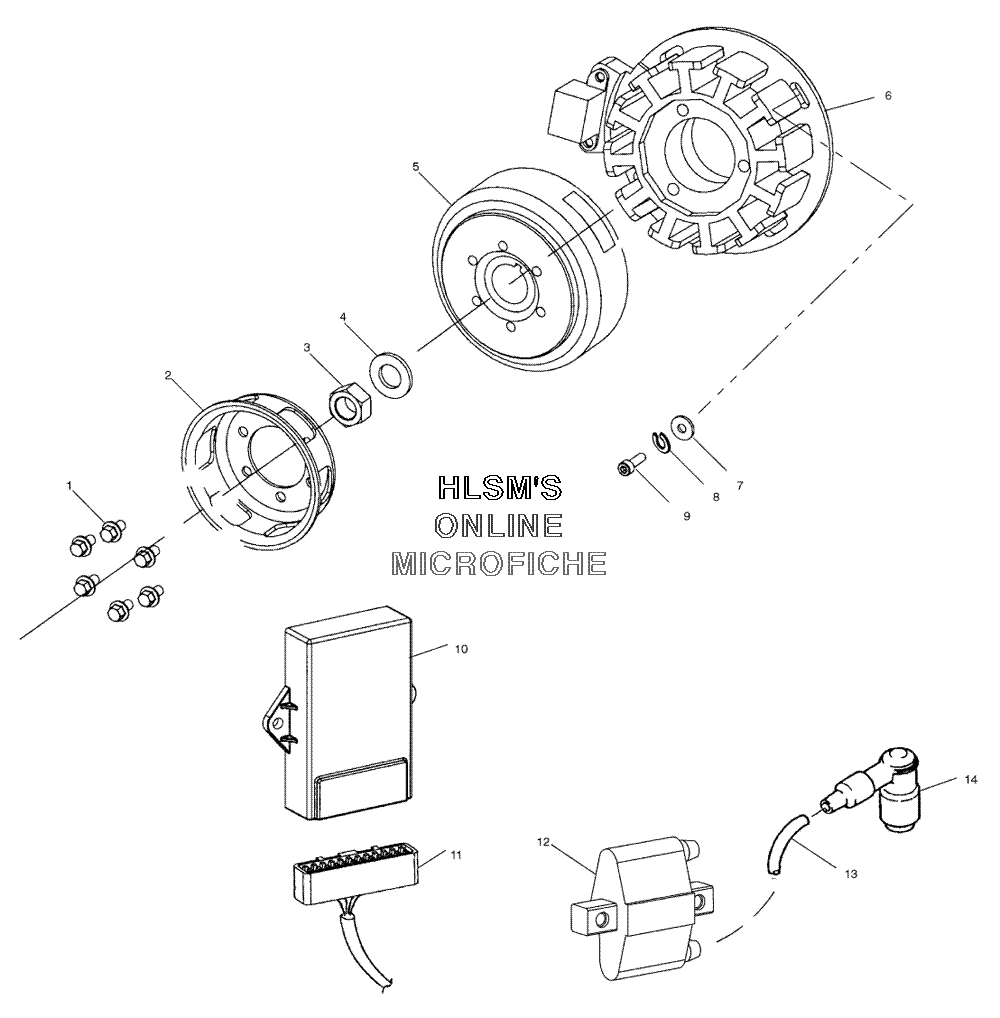

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 CLASSIC (S03ND6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL IGNITIONFLYWHEEL IGNITION
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202323 CDI KIT (INCL. NYOGEL AND DECAL)CDI KIT (INCL. NYOGEL AND DECAL)
-
114010549 HARNESS IGNITION SNO TWN KOK NEWHARNESS IGNITION SNO TWN KOK NEW
-
124060229 COIL, IGNITION KOKCOIL, IGNITION KOK
-
134010124-305 WIRE, IGNITION BULK 305CMWIRE, IGNITION BULK 305CM
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
