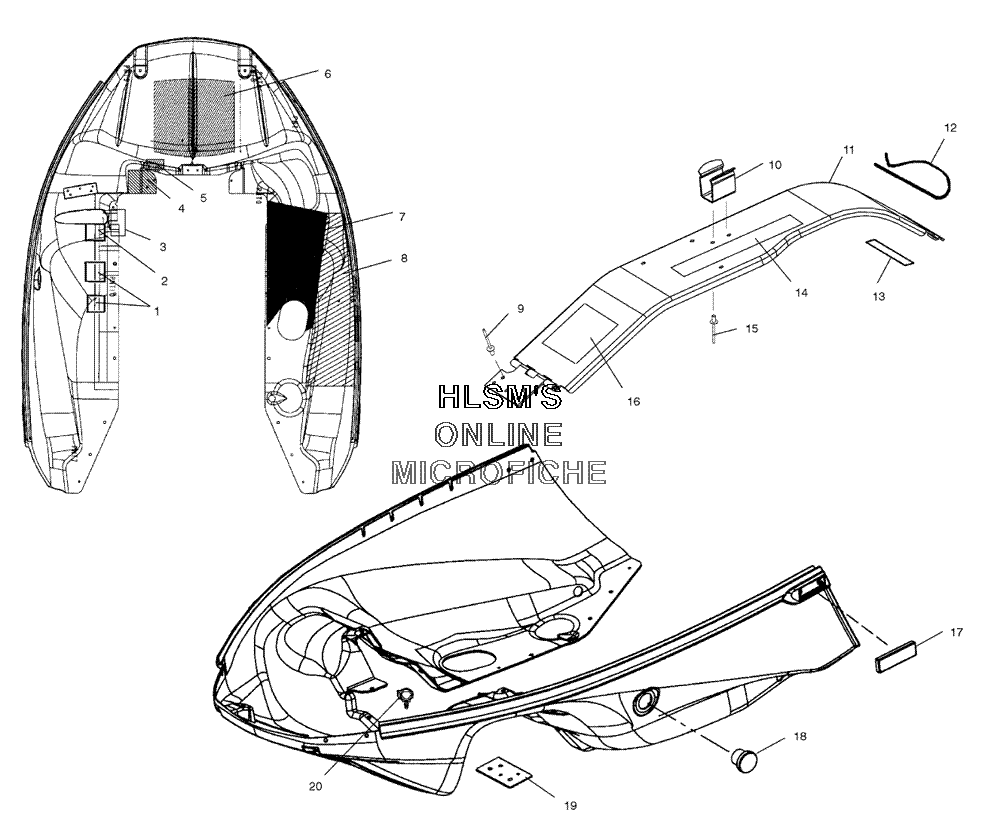

NOSEPAN ASSEMBLY #2 для Polaris 600 CLASSIC (S03ND6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17670130 SPD CLIP "U" TYPESPD CLIP "U" TYPE
-
27080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
27621462 RIVETRIVET
-
35811948 FOILFOIL
-
45812020 FOIL, TAPEFOIL, TAPE
-
55810949 FOIL, TAPE (1.5X6)FOIL, TAPE (1.5X6)
-
65812036 FOIL (10X10)FOIL (10X10)
-
75812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
85812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
97621402 RIVET, POPRIVET, POP
-
105222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
111013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
127080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
135812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
147075350 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
157621429 RIVETRIVET
-
167170930 DECAL TROUBLE SHOOT M-10DECAL TROUBLE SHOOT M-10
-
172670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
185433926 PLUG, OBLONGPLUG, OBLONG
-
195211722 PLATE, BACKERPLATE, BACKER
-
204020139 CLIP, ROSEBUDCLIP, ROSEBUD
