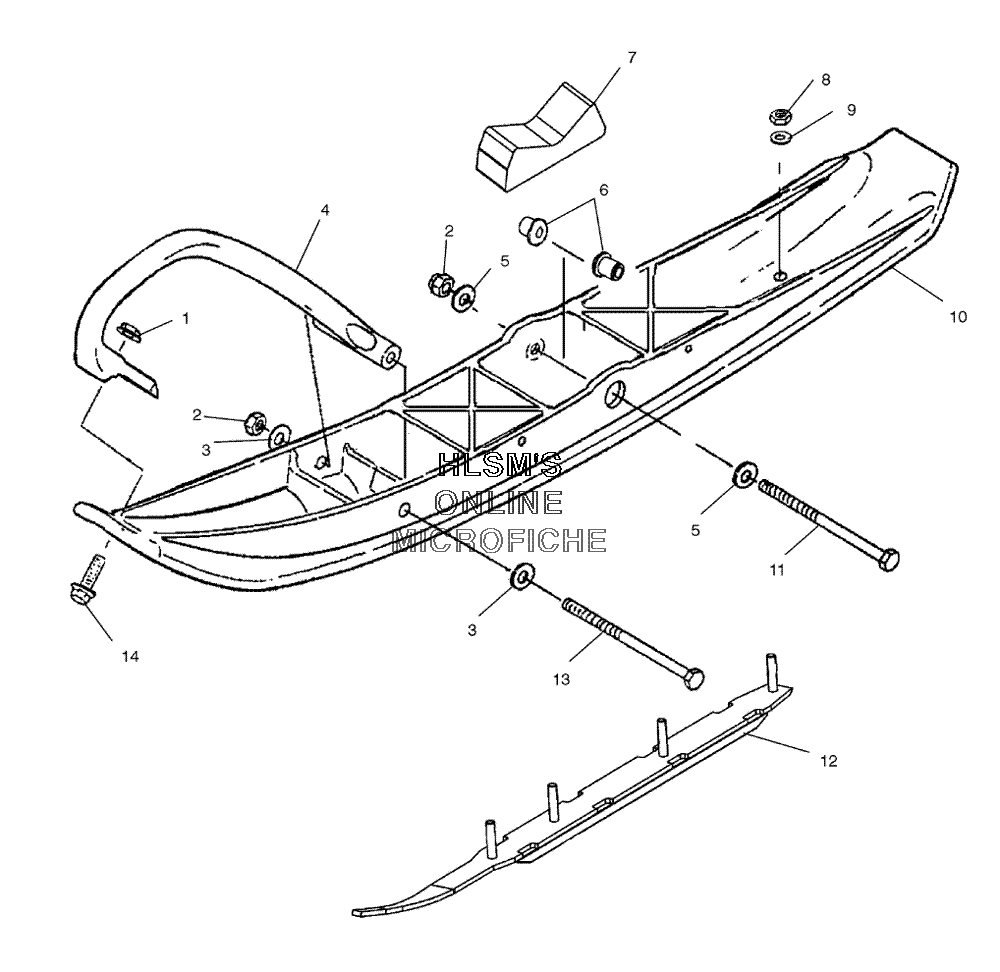

SKI ASSEMBLY для Polaris 600 CLASSIC (S03ND6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METALBUSHING, METAL
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHER FLATWASHER FLAT
-
101820929-070 COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)
-
117517968 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
122874066 SKAG ACCU TRAC DUALSKAG ACCU TRAC DUAL
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
