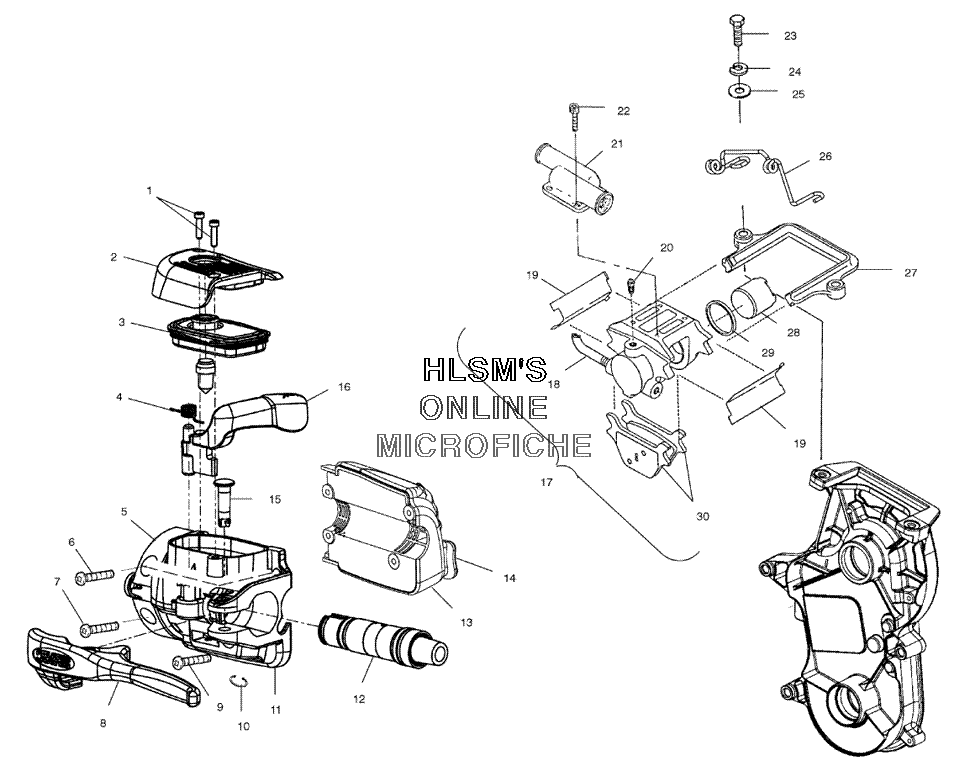

BRAKE ASSEMBLY для Polaris 700 SKS (S03NS7CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
12201254 KIT, COVER SCREWKIT, COVER SCREW
-
22201255 KIT, COVER ASSEMBLY (INCL. 1, 3)KIT, COVER ASSEMBLY (INCL. 1, 3)
-
42201250 KIT, PARK LEVER SPRINGKIT, PARK LEVER SPRING
-
52010219 KIT - ASSY. MASTER CYL W/PIPE THRO (INCL. 2, 4, 8, 11, 12, 15)KIT - ASSY. MASTER CYL W/PIPE THRO (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREWSCREW
-
77512078 SCREWSCREW
-
82201943 KIT - LEVER, 3 NOTCH/PIN/RINGKIT - LEVER, 3 NOTCH/PIN/RING
-
97517566 SCREWSCREW
-
102201945 KIT - SNAP RINGKIT - SNAP RING
-
112202146 KIT - ASSY. MASTER CYL W/PIPE THROKIT - ASSY. MASTER CYL W/PIPE THRO
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 KIT - 5/8" CARTRIDGE SUB ASSY.KIT - 5/8" CARTRIDGE SUB ASSY.
-
132010167 CONTROL ASSY. (LEFT) (BASIC)CONTROL ASSY. (LEFT) (BASIC)
-
145433291 BUTTON SWITCH HI/LO, (LEFT) CONTROLBUTTON SWITCH HI/LO, (LEFT) CONTROL
-
152201946 KIT - PIVOT PIN, ALUM W/SNAP RINGKIT - PIVOT PIN, ALUM W/SNAP RING
-
162201251 KIT, PARK LEVER AND SPRING (INCL. 4)KIT, PARK LEVER AND SPRING (INCL. 4)
-
171910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 28, 29, 30)BRAKE CALIPER, HD, LIQ, NOSW (INCL. 28, 29, 30)
-
181910546 LINE - BRAKE, EDGE, BRAIDEDLINE - BRAKE, EDGE, BRAIDED
-
192200467 KIT, CLIP SPRING (QTY. 2)KIT, CLIP SPRING (QTY. 2)
-
201930735 KIT, INLETKIT, INLET
-
211930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
212201024 GASKET, BRK.COOLERGASKET, BRK.COOLER
-
221930729 PK/4, SCREW SET (PKG. OF 4)PK/4, SCREW SET (PKG. OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257555801 WASHERWASHER
-
265244413 GUIDE - ROPEGUIDE - ROPE
-
271930733 KIT, CALIPER BRACKET.KIT, CALIPER BRACKET.
-
281930734 KIT, PISTON SEAL (INCL. 29)KIT, PISTON SEAL (INCL. 29)
-
292200466 SEALSEAL
-
302201430 KIT, BRAKE, PAD TYPE 81 (LARGE) (INCL. 19)KIT, BRAKE, PAD TYPE 81 (LARGE) (INCL. 19)
