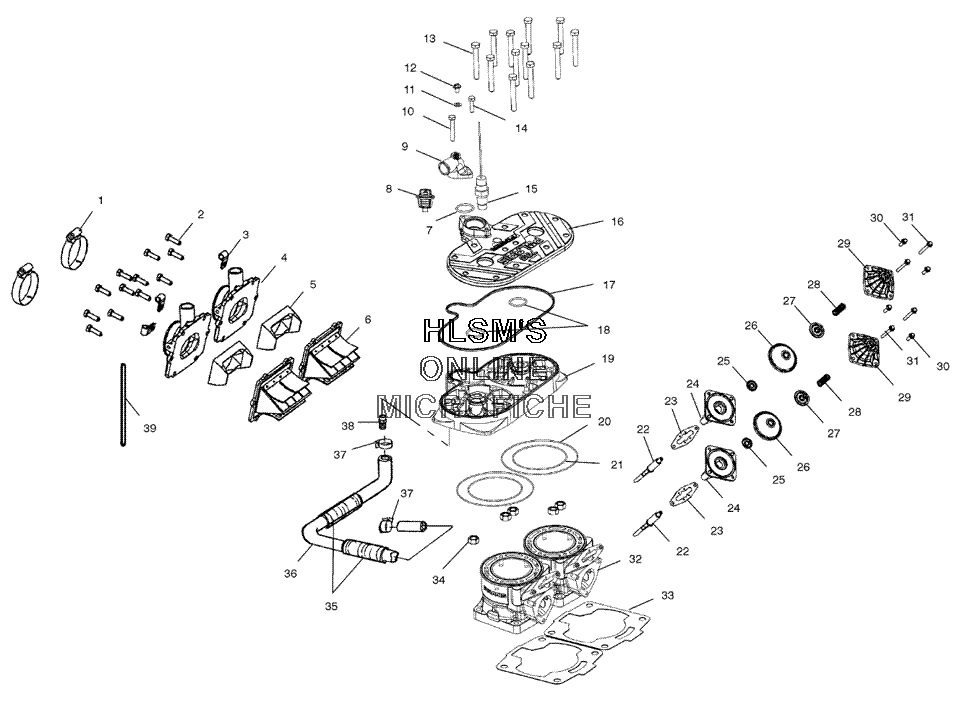

CYLINDER ASSEMBLY для Polaris 700 SKS (S03NS7CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SS,CLAMP, HOSE, SS,
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR, 40MMADAPTER, CARBURETOR, 40MM
-
55433151 STUFFER - REED BLOCK, NOKSTUFFER - REED BLOCK, NOK
-
61201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
75411521 O - RING, LIPSEALO - RING, LIPSEAL
-
87052258 THERMOSTAT - 120ШF W/O BYPASSTHERMOSTAT - 120ШF W/O BYPASS
-
95630992 COVER - THERMOSTATCOVER - THERMOSTAT
-
107517950 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREWSCREW
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154010398 SENSOR - THERMISTER, ESX8477ASENSOR - THERMISTER, ESX8477A
-
165631201-366 COVER - HEAD 81 SNO 700 RED PWDCOVER - HEAD 81 SNO 700 RED PWD
-
175411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
185410917 O - RINGO - RING
-
193021323 HEAD - CYL 81MM 3/8 DETONHEAD - CYL 81MM 3/8 DETON
-
205412232 O - RINGO - RING
-
215410932 O - RINGO - RING
-
225132669 VALVE - GUILLOTINE GEN 3.5, 700EVVALVE - GUILLOTINE GEN 3.5, 700EV
-
235812350 GASKET - BASE TO CYL EXH VALVEGASKET - BASE TO CYL EXH VALVE
-
241202216 ASSY. - BASE EXH VALVE DOMASSY. - BASE EXH VALVE DOM
-
255132950 WASHER - BELLOWS, EXH VALVE, DOMWASHER - BELLOWS, EXH VALVE, DOM
-
265412147 BELLOWS - EXH MODIFIEDBELLOWS - EXH MODIFIED
-
275631381 CAP/NUT, BELLOWS - EXH VALVE DOMCAP/NUT, BELLOWS - EXH VALVE DOM
-
287041786-08 SPRING - COMP, GRN/YLWSPRING - COMP, GRN/YLW
-
295434599 ASSY. - HOUSING W/BUSHINGASSY. - HOUSING W/BUSHING
-
307516820 SCREWSCREW
-
317517932 SCREWSCREW
-
323021340 CYLINDER - 81MM SNO EVCYLINDER - 81MM SNO EV
-
335812362 GASKET - CYL BASE METAL 700GASKET - CYL BASE METAL 700
-
347547013 NUTNUT
-
355521398-96 CONDUIT, FLEXCONDUIT, FLEX
-
365411536 HOSE, BYPASSHOSE, BYPASS
-
377081030 CLAMP - BYPASSCLAMP - BYPASS
-
387052222 FITTINGFITTING
-
397080654 RETAINER, SS.RETAINER, SS.
