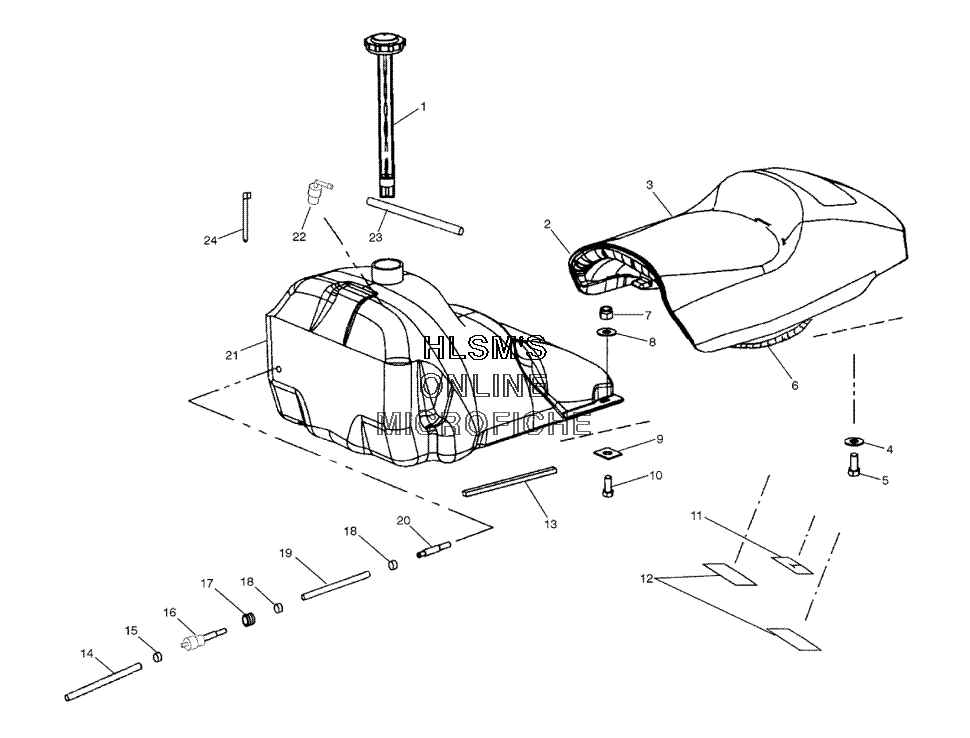

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 SKS (S03NS7CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
12520323 CAP - FUEL, 12 GAL W/GAUGECAP - FUEL, 12 GAL W/GAUGE
-
22683159 ASSY. - SEAT, EDGE SKS CRSS CNTRY (INCL. 3, 6)ASSY. - SEAT, EDGE SKS CRSS CNTRY (INCL. 3, 6)
-
32683160 ASSY. - SEAT COVER, EDGE SKS CCASSY. - SEAT COVER, EDGE SKS CC
-
47558301 WASHER, FLATWASHER, FLAT
-
57517219 SCREWSCREW
-
62461064 HARNESS - TAILLIGHT, SEATHARNESS - TAILLIGHT, SEAT
-
77542122 NUT - NYLOKNUT - NYLOK
-
87555960 WASHER, FLATWASHER, FLAT
-
97670021 NUT, SPEEDNUT, SPEED
-
107512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
115812291 GASKET - WIREHARNESSGASKET - WIREHARNESS
-
125812289 PATCH - 3.00 X 4.00PATCH - 3.00 X 4.00
-
135810947 FOAM, SEALFOAM, SEAL
-
148350017-600 FUEL, LINE, ETHER, RED, 5/16"FUEL, LINE, ETHER, RED, 5/16"
-
157080003 CLAMP, HOSECLAMP, HOSE
-
167052269 FITTINGFITTING
-
175432981 GROMMETGROMMET
-
187080768 RING, COMPRESSIONRING, COMPRESSION
-
198350020-600 FUEL, LINE, ETHER, VLT, 3/8"FUEL, LINE, ETHER, VLT, 3/8"
-
207052215 PICK - UP, FUEL, W/MESHPICK - UP, FUEL, W/MESH
-
212520262 ASSY. - FUEL TANKASSY. - FUEL TANK
-
227052095 FITTINGFITTING
-
238450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
247080804 CABLE TIE - RELEASABLECABLE TIE - RELEASABLE
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CHAINCASE - REVERSE MODELS
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE CLUTCH - MANUAL START
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FRAME - CHASSIS ACCESSORIES
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN #1
- NOSEPAN #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- • SEAT W/ GAS TANK ASSEMBLY
- SHIFT - REVERSE MODELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK
- SUSPENSION/TRACK
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
