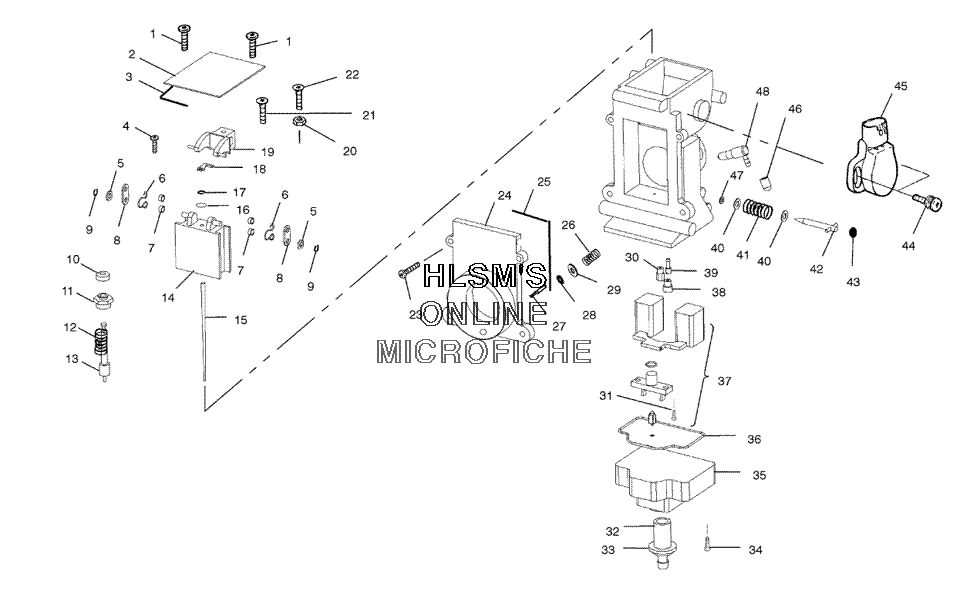

CARBURETOR ASSEMBLY для Polaris 800 SKS (S03NS8CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130976 CAP - TOPCAP - TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E - RINGE - RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASSYPLUNGER ASSY
-
143130940 VALVE, PISTON 1.5 (1.5)VALVE, PISTON 1.5 (1.5)
-
153131415 NEEDLE - JET J8 - 9DGN05 - 57 (J8 - 9DN05 - 57)NEEDLE - JET J8 - 9DGN05 - 57 (J8 - 9DN05 - 57)
-
163130867 PACKINGPACKING
-
173130868 E - RINGE - RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130825 SCREWSCREW
-
243131439 ASSY. - FUNNELASSY. - FUNNEL
-
253131356 O - RING, LONG AIR FUNNELO - RING, LONG AIR FUNNEL
-
263131371 SPRINGSPRING
-
273131336 SCREW - AIRSCREW - AIR
-
283130522 O - RINGO - RING
-
293131372 WASHERWASHER
-
303130147 JET, MAIN, HX.HD#470 (470)JET, MAIN, HX.HD#470 (470)
-
313130860 SCREWSCREW
-
323131248 BOLT - DRAINBOLT - DRAIN
-
333130863 O - RINGO - RING
-
343130824 SCREWSCREW
-
353130858 FLOAT, BODYFLOAT, BODY
-
363130861 O - RINGO - RING
-
373131231 ASSY., FLOAT, 1.8ASSY., FLOAT, 1.8
-
383130067 JET, PILOT, #40 (40)JET, PILOT, #40 (40)
-
393130767 JET, STARTER, #VM11/22 - 135 (135)JET, STARTER, #VM11/22 - 135 (135)
-
403130837 WASHERWASHER
-
413130836 SPRINGSPRING
-
423130987 ADJUSTERADJUSTER
-
433130986 CAPCAP
-
443131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
453131009 ASSY. - SENSOR (MAG SIDE)ASSY. - SENSOR (MAG SIDE)
-
463130479 CAPCAP
-
473130835 PACKINGPACKING
-
487051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
481253449 ASSY. - CARBURETOR, TM40ASSY. - CARBURETOR, TM40
