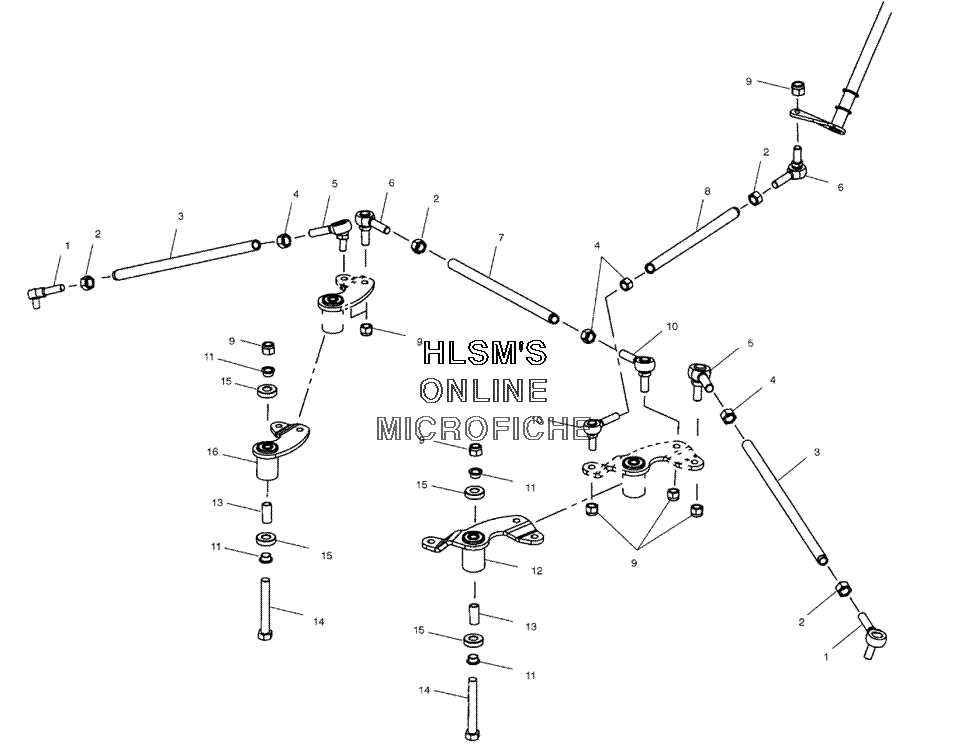

STEERING LINKAGE для Polaris 800 SKS (S03NS8CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
17061086 ROD - END 3/8, 50Ш, 1.00 (RIGHT)ROD - END 3/8, 50Ш, 1.00 (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35334147 TIE RODTIE ROD
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061085 ROD - END 3/8, 50Ш, .750 (LEFT)ROD - END 3/8, 50Ш, .750 (LEFT)
-
67061076 ROD END - 3/8 (RIGHT), HI - ANGLE, PRROD END - 3/8 (RIGHT), HI - ANGLE, PR
-
75333772 ROD, STEERING RACK, 11.50ROD, STEERING RACK, 11.50
-
85333773-067 ROD, DRAGLINKROD, DRAGLINK
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END - 3/8 (LEFT), HI - ANGLE, PRROD END - 3/8 (LEFT), HI - ANGLE, PR
-
115132106 BUSHING - REDUCERBUSHING - REDUCER
-
121820957 ASSY., PITMAN ARM (INCL. 11, 13, 15)ASSY., PITMAN ARM (INCL. 11, 13, 15)
-
135133423 SPACER - TUBE PITMAN/IDLER ARMSSPACER - TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING - BALLBEARING - BALL
-
161820959 ASSY. - IDLER ARM (INCL. 11, 13, 15)ASSY. - IDLER ARM (INCL. 11, 13, 15)
