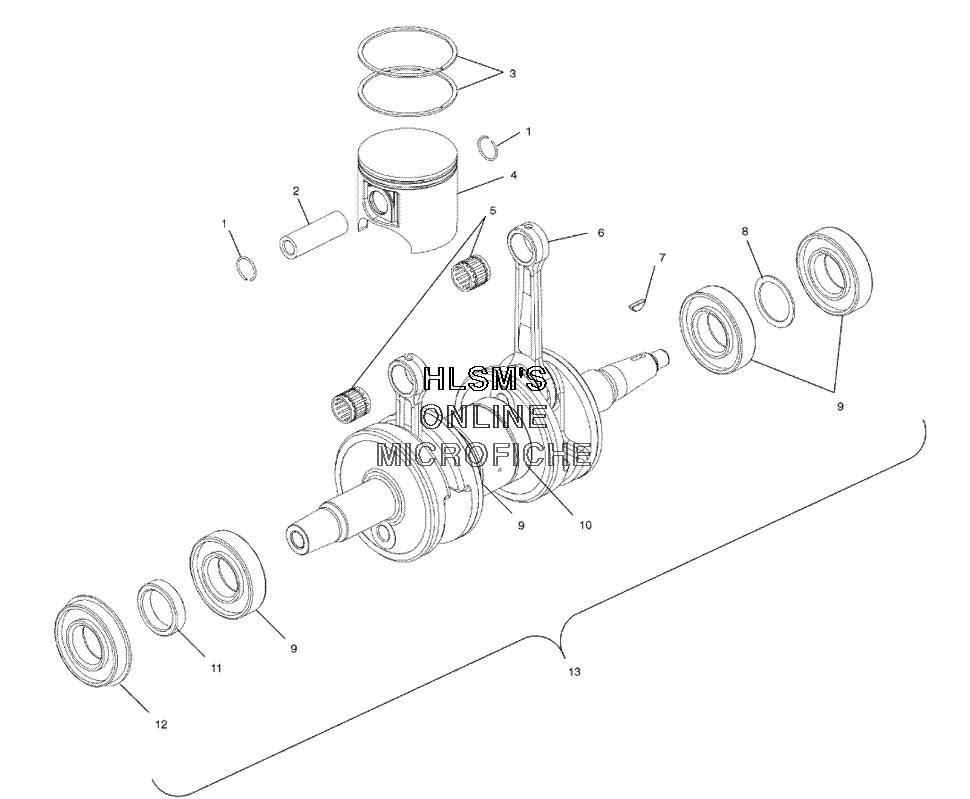

PISTON AND CRANKSHAFT для Polaris 800 SKS (S03NS8CS/A) - 2003 года выпуска
-
№АртикулНазвание
-
13021179 CIRCLIP, PISTON, 22MMX1.6 (2)CIRCLIP, PISTON, 22MMX1.6 (2)
-
32201631 KIT, PISTON, RING, STANDARD, 85MMKIT, PISTON, RING, STANDARD, 85MM
-
42202337 KIT - PISTON ASSY. 85MM STANDARD GR (INCL. 1, 2, 3)KIT - PISTON ASSY. 85MM STANDARD GR (INCL. 1, 2, 3)
-
53514357 BEARINGBEARING
-
62201557 CONNECTING, ROD, KIT (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING, ROD, KIT (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACERSPACER
-
123514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
132201842 KIT - CRANKSHAFT (INCL. 8 - 12)KIT - CRANKSHAFT (INCL. 8 - 12)
