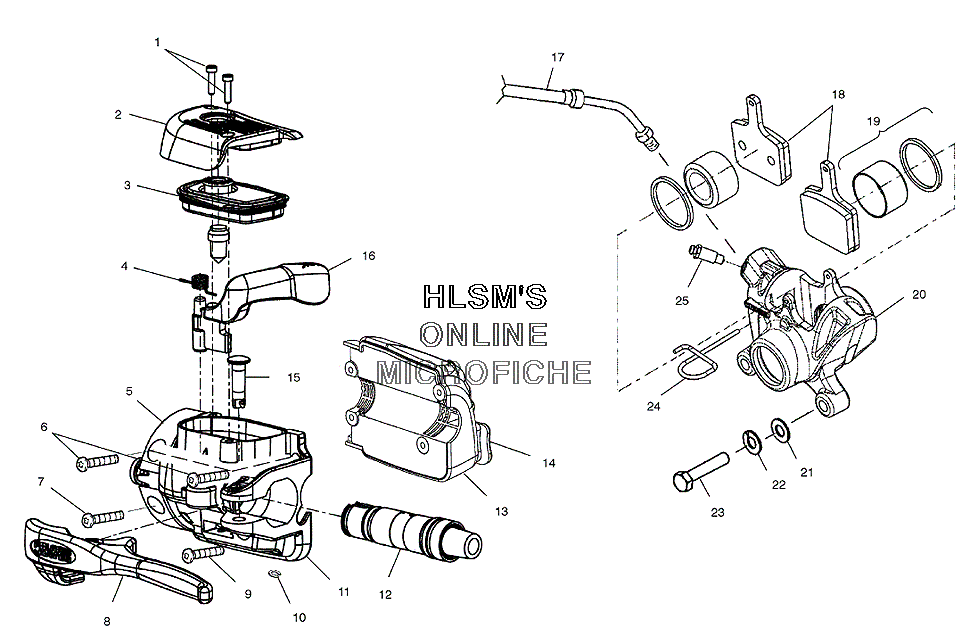

BRAKE ASSEMBLY для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW, KITCOVER SCREW, KIT
-
22201255 COVER ASSY KIT (INCL. 1, 3)COVER ASSY KIT (INCL. 1, 3)
-
42201250 PARK LEVER SPRING KITPARK LEVER SPRING KIT
-
52010219 MASTER CYLINDER ASSY KIT W/PIPE THRO (INCL. 1-4, 8, 11, 12, 15, 16)MASTER CYLINDER ASSY KIT W/PIPE THRO (INCL. 1-4, 8, 11, 12, 15, 16)
-
67517441 SCREW (.75)SCREW (.75)
-
77512078 SCREW (1.12)SCREW (1.12)
-
82201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
97517566 SCREW (1.50)SCREW (1.50)
-
102201945 SNAP RING KITSNAP RING KIT
-
112201948 MASTER CYLINDER ASSY KIT W/PIPE THROMASTER CYLINDER ASSY KIT W/PIPE THRO
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 CARTRIDGE SUB ASSY KIT (5/8")CARTRIDGE SUB ASSY KIT (5/8")
-
132010215 CONTROL, ASSY (LEFT/4 STRK)CONTROL, ASSY (LEFT/4 STRK)
-
145433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
152201946 PIVOT PIN, ALUM W/SNAP RING KITPIVOT PIN, ALUM W/SNAP RING KIT
-
162201251 PARK LEVER AND SPRING KIT (INCL. 4)PARK LEVER AND SPRING KIT (INCL. 4)
-
171910607 LINE BRAKE BRAIDEDLINE BRAKE BRAIDED
-
182202202 BRAKE PAD, KIT TYPE 81BRAKE PAD, KIT TYPE 81
-
192202207 PISTON/SEAL KITPISTON/SEAL KIT
-
192202204 SEAL KITSEAL KIT
-
202202198 BRAKE CALIPER, ASSY KIT AIR (STD) (INCL. 18, 19)BRAKE CALIPER, ASSY KIT AIR (STD) (INCL. 18, 19)
-
217556160 WASHERWASHER
-
227552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
237515534 SCREWSCREW
-
242202206 PIN RETAINING KITPIN RETAINING KIT
-
252202205 BLEEDER FITTING KITBLEEDER FITTING KIT
