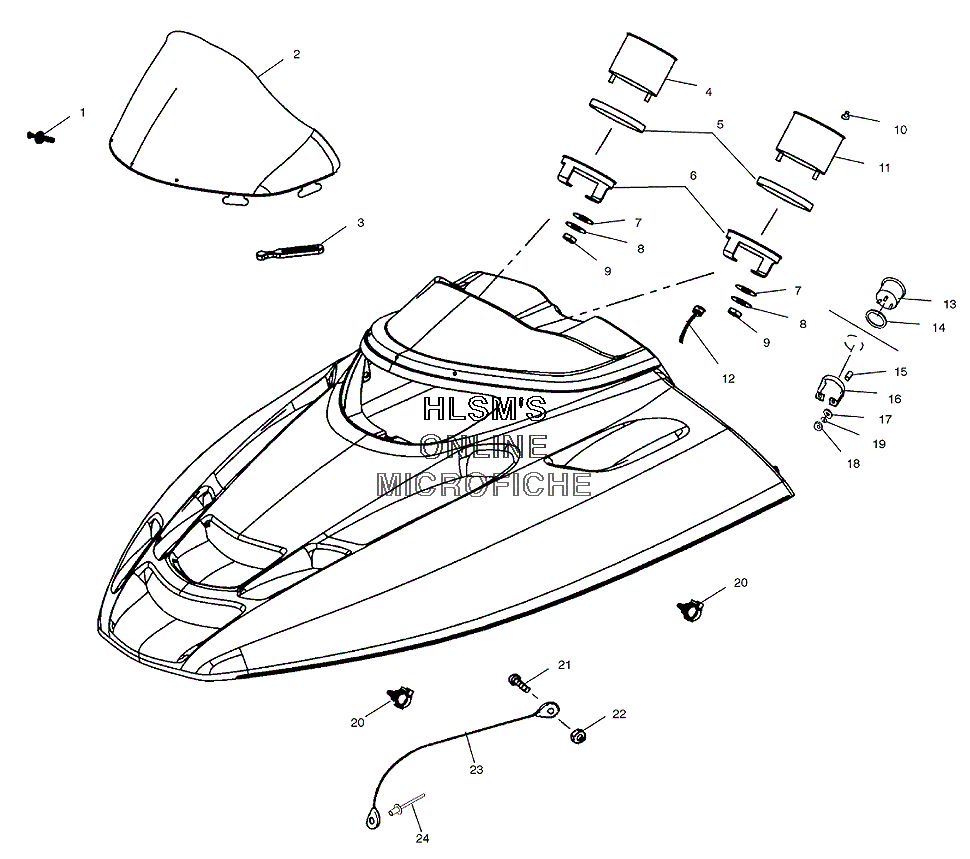

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25433517 WINDSHIELD, EDGE (15")WINDSHIELD, EDGE (15")
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280417 TACHOMETER, KIT (5", 6P) (WHITE/BLACK)TACHOMETER, KIT (5", 6P) (WHITE/BLACK)
-
44030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
53280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
63280210 BRACKET TACHOMETER/SPEEDOMETER (5")BRACKET TACHOMETER/SPEEDOMETER (5")
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT) THD.KNOB, TRIP ODOMETER (LEFT) THD.
-
113280415 SPEEDOMETER, ASSY (5" 120MPH) (WHITE/BLACK)SPEEDOMETER, ASSY (5" 120MPH) (WHITE/BLACK)
-
114030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
123280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
133280410 FUEL GAUGE, ASSY 2" BACKLIGHT (WHITE/BLACK)FUEL GAUGE, ASSY 2" BACKLIGHT (WHITE/BLACK)
-
134060139 FUSEFUSE
-
143280230 CUSHION, FUELGAUGE RUBBER (2")CUSHION, FUELGAUGE RUBBER (2")
-
153280228 SPACER BRACKET (FUELGAUGE)SPACER BRACKET (FUELGAUGE)
-
163280229 BRACKET, FUELGAUGE (2")BRACKET, FUELGAUGE (2")
-
173280231 WASHERWASHER
-
183280232 NUTNUT
-
193280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
207080886 CLIP (ROSEBUD/GRAY)CLIP (ROSEBUD/GRAY)
-
217512018 SCREWSCREW
-
227541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
237080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
247661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
