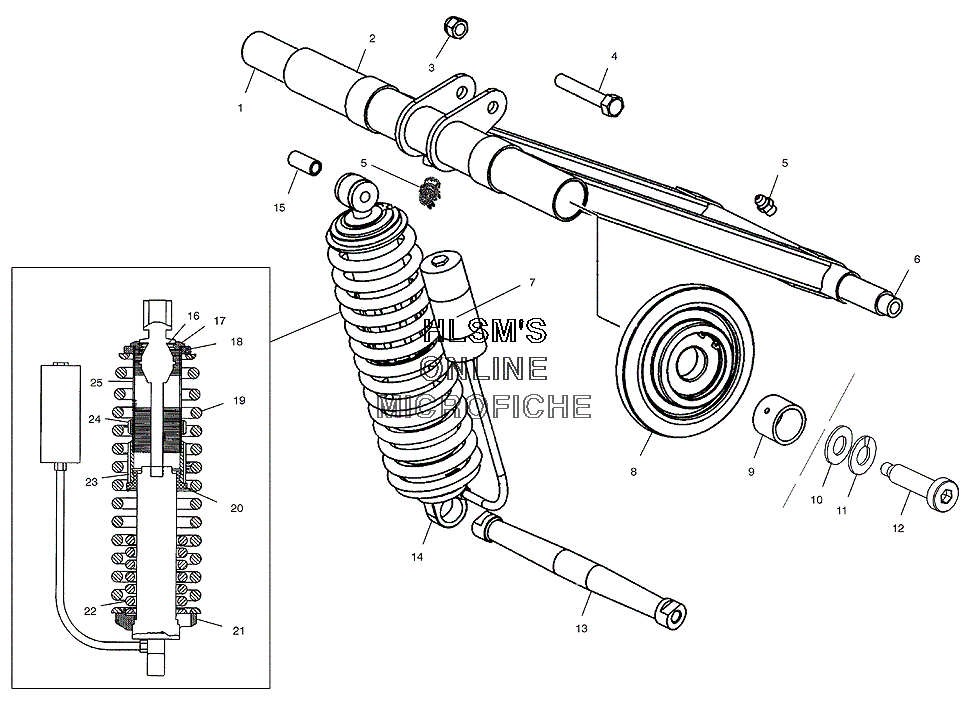

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
15132578 SHAFT M-10 (UPPER)SHAFT M-10 (UPPER)
-
21541527-067 TORQUE ARM, M-10 (BLACK)TORQUE ARM, M-10 (BLACK)
-
37542439 NUT, NYLOKNUT, NYLOK
-
47515415 SCREWSCREW
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
65133093 SHAFT (LOWER)SHAFT (LOWER)
-
77079432 DECAL M-10 FOX RESDECAL M-10 FOX RES
-
81590308 WHEEL, ASSY OFF-SET 5.60WHEEL, ASSY OFF-SET 5.60
-
83514330 BEARINGBEARING
-
95132582 COLLAR BEARING LOCK (REAR)COLLAR BEARING LOCK (REAR)
-
97512257 SCREW SOCKET SETSCREW SOCKET SET
-
107555984 WASHER, FLATWASHER, FLAT
-
117552614 WASHER, LOCKWASHER, LOCK
-
127517815 SCREW SOCKET HEAD P80-DGPTSCREW SOCKET HEAD P80-DGPT
-
147041934 SHOCK, REAR TRACK REZY M-10SHOCK, REAR TRACK REZY M-10
-
155333905 SLEEVESLEEVE
-
165244747 CAP ICECAP ICE
-
175020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
185132645 NUT PRELOADNUT PRELOAD
-
197041935-385 SPRING REAR SHOCK, M-10 (CLOUD SILVER)SPRING REAR SHOCK, M-10 (CLOUD SILVER)
-
205433882 BUSHING OVER LOAD DEPRESSORBUSHING OVER LOAD DEPRESSOR
-
215133032 RETAINER SPRING (REAR)RETAINER SPRING (REAR)
-
227041936-067 SPRING OVER/LOAD, M-10 (BLACK/REAR)SPRING OVER/LOAD, M-10 (BLACK/REAR)
-
235132625 RING ADJUSTERRING ADJUSTER
-
245132643 NUT RING ADJUSTERNUT RING ADJUSTER
-
255132794 SLEEVE OVER LOAD DEPRESSORSLEEVE OVER LOAD DEPRESSOR
