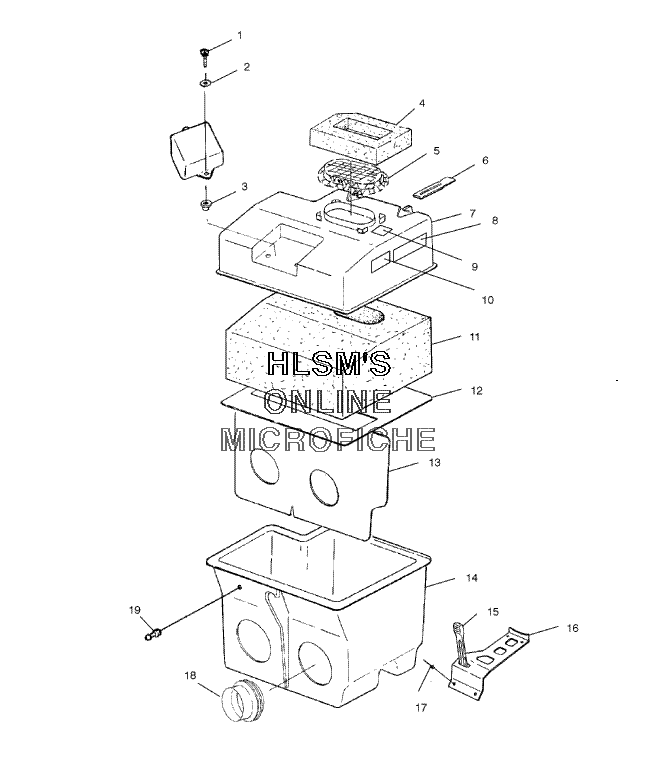

AIR BOX для Polaris SPORT TOURING (S03SU5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17512222 SCREWSCREW
-
27552604 WASHERWASHER
-
37541923 NUT-WELLNUT-WELL
-
45811606 FOAM, AIRBOX, CHIMNEY, HYB.FOAM, AIRBOX, CHIMNEY, HYB.
-
55243219 MESH-WIRE, FORMEDMESH-WIRE, FORMED
-
65411075 RETAINER-TABRETAINER-TAB
-
75433565 TOP-SILENCER INTAKETOP-SILENCER INTAKE
-
87073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
97075351 DECAL, CAUTIONDECAL, CAUTION
-
107073426 DECAL, GREASINGDECAL, GREASING
-
115811564 FOAM, AIRBOX, TOP, INTERNALFOAM, AIRBOX, TOP, INTERNAL
-
125850134 PLATE, SILENCER INTAKEPLATE, SILENCER INTAKE
-
135850139 PLATE, SILENCER, INTAKE, VERT.PLATE, SILENCER, INTAKE, VERT.
-
145432932 SILENCER, INTAKE, DRILLEDSILENCER, INTAKE, DRILLED
-
155411129 STRAP, TIE-DOWNSTRAP, TIE-DOWN
-
165241691 BRACKET, SILENCER MOUNT, LOWERBRACKET, SILENCER MOUNT, LOWER
-
177661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
185411467 BOOT, CARBBOOT, CARB
-
197052127 FITTING, HOSEFITTING, HOSE
