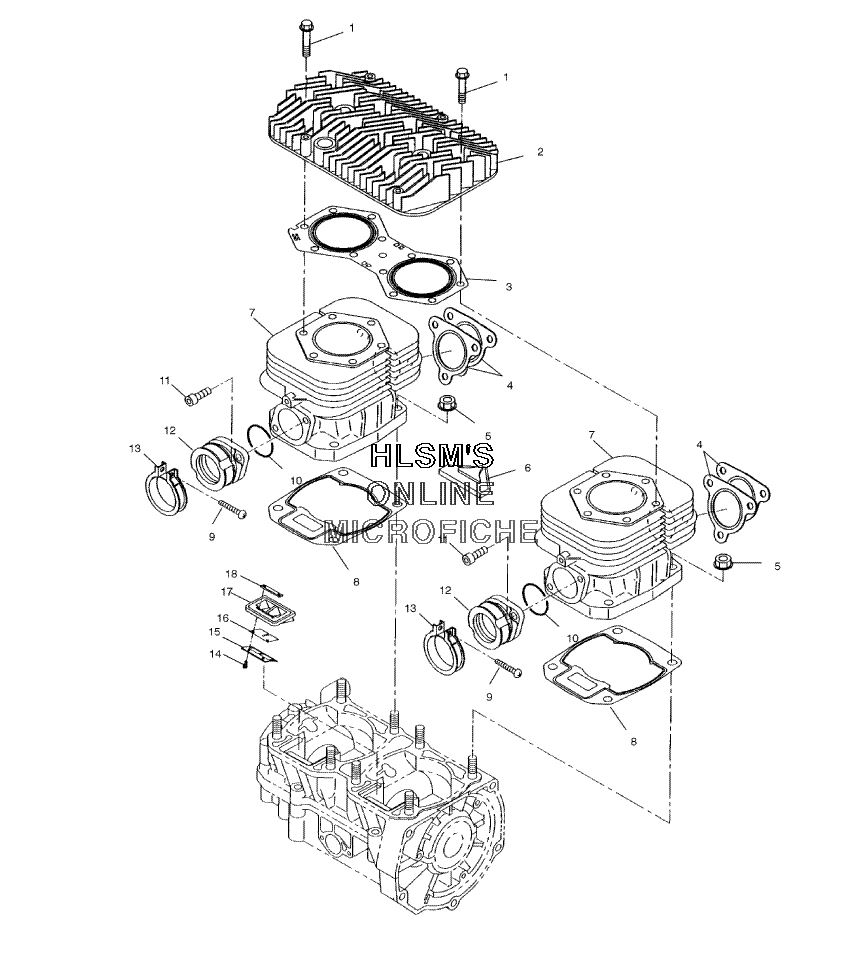

CYLINDER ASSEMBLY для Polaris SPORT TOURING (S03SU5BS) - 2003 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23085703 HEAD, CYLINDERHEAD, CYLINDER
-
33085704 GASKET, HEADGASKET, HEAD
-
43085714 GASKET, EXHAUSTGASKET, EXHAUST
-
53082911 NUT-FLANGENUT-FLANGE
-
63085692 COVER, CYL.BAFFLECOVER, CYL.BAFFLE
-
73085936 UNIT-CYLINDERUNIT-CYLINDER
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081497 SCREW, PAN HEADSCREW, PAN HEAD
-
103085619 O-RINGO-RING
-
113081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
123085670 ADAPTER ASSY. (INCL. 10)ADAPTER ASSY. (INCL. 10)
-
133083166 ADAPTER BAND ASSY. (INCL. 9)ADAPTER BAND ASSY. (INCL. 9)
-
143085717 SCREW & WASHER ASSY.SCREW & WASHER ASSY.
-
153086387 STOPPERSTOPPER
-
163085715 REED VALVEREED VALVE
-
173086386 REED VALVE ASSY.REED VALVE ASSY.
-
183086388 PLATEPLATE
