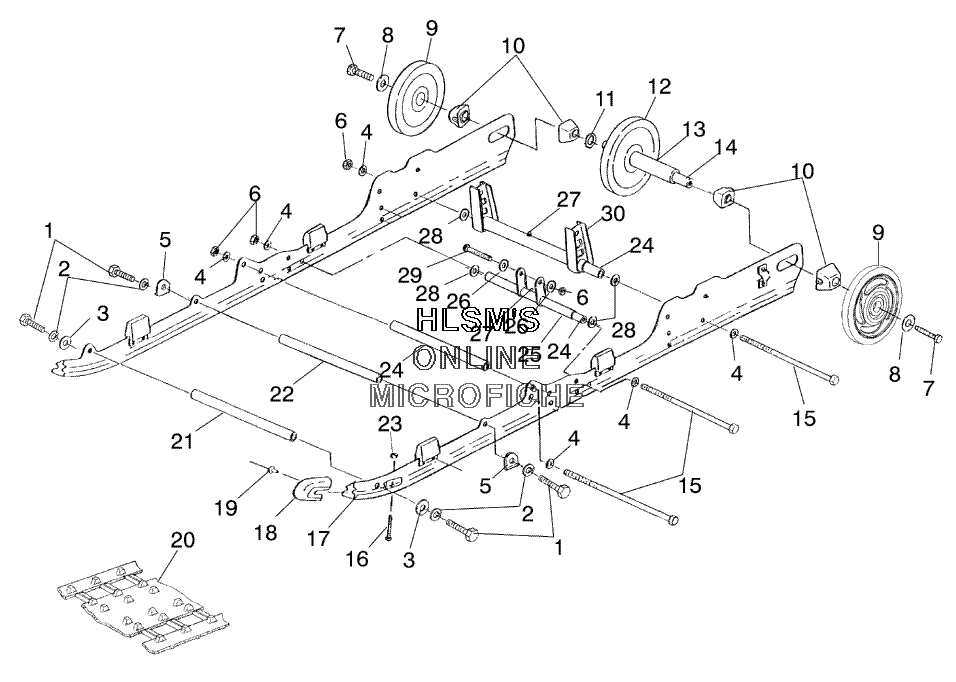

SUSPENSION - REAR TRACK для Polaris SPORT TOURING (S03SU5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17517247 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555923 WASHERWASHER
-
47555806 WASHER, FLATWASHER, FLAT
-
55241443 BRACKET-SHAFT SUPPORTBRACKET-SHAFT SUPPORT
-
67542439 NUT, NYLOKNUT, NYLOK
-
77515526 BOLTBOLT
-
87571629 WASHERWASHER
-
91590303-244 IDLER WHEEL ASSY. SILVER METALLICIDLER WHEEL ASSY. SILVER METALLIC
-
105432535 SPACER, IDLERSPACER, IDLER
-
117555918 BUSHINGBUSHING
-
121594087 WHEEL ASSY., PLAIN(6.38 O.D.)WHEEL ASSY., PLAIN(6.38 O.D.)
-
135333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
145020744 SHAFT, IDLERSHAFT, IDLER
-
157517921 SCR-3/8-24X9.875, HX/LP, GR8-YSCR-3/8-24X9.875, HX/LP, GR8-Y
-
175521452 SLIDER, WHI.SLIDER, WHI.
-
205411797 TRACK, 136"X1" LIGHTNINGTRACK, 136"X1" LIGHTNING
-
205222839 CLIP, TRACK(CAMOPLAST),CLIP, TRACK(CAMOPLAST),
-
205222840 CLIP, GUIDECLIP, GUIDE
-
215020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
225020724 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
245333404 SHAFTSHAFT
-
251541001-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
267555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
277080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
287555893 WASHER, FLATWASHER, FLAT
-
297515472 BOLTBOLT
-
301541241-067 ARM, REAR PIVOTARM, REAR PIVOT
