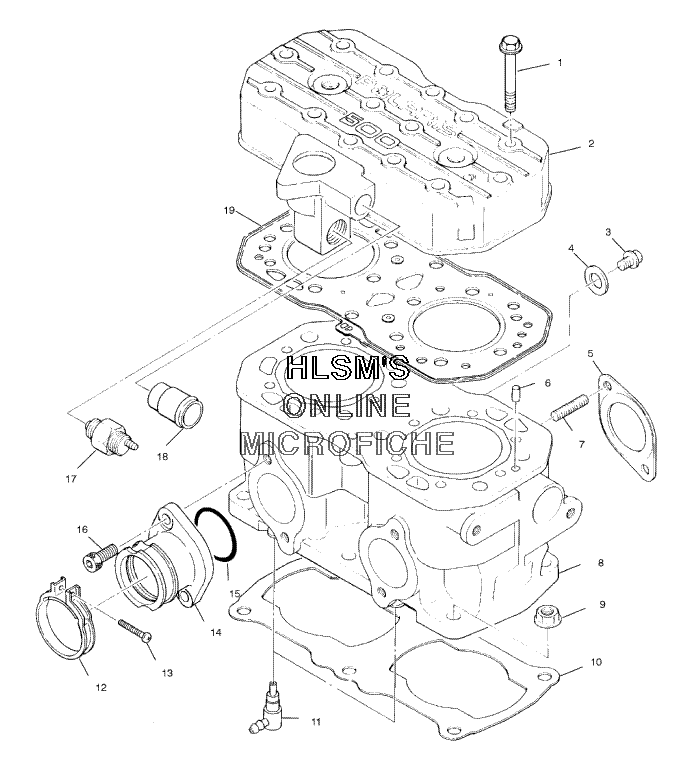

CYLINDER ASSEMBLY для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23085584 HEAD, CYLINDER (INCL. 18)HEAD, CYLINDER (INCL. 18)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53086995 GASKET EXHAUSTGASKET EXHAUST
-
63080103 PIN, DOWELPIN, DOWEL
-
73085326 STUDSTUD
-
83085583 CYLINDER (INCL. 7)CYLINDER (INCL. 7)
-
93082911 NUT FLANGENUT FLANGE
-
103084768 GASKET, BASEGASKET, BASE
-
113086785 VALVE ASSY., CHECKVALVE ASSY., CHECK
-
123083166 ADAPTER BAND ASSY. (INCL. 13)ADAPTER BAND ASSY. (INCL. 13)
-
133081497 SCREW, PAN HEADSCREW, PAN HEAD
-
143085044 ADAPTER, CARBURETOR (INCL. 15)ADAPTER, CARBURETOR (INCL. 15)
-
153085619 O-RINGO-RING
-
163081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
173084284 SWITCH, THERMAL (105 DEGREE C)SWITCH, THERMAL (105 DEGREE C)
-
183083452 PIPE, WATERPIPE, WATER
-
193085585 GASKET 2, HEADGASKET 2, HEAD
