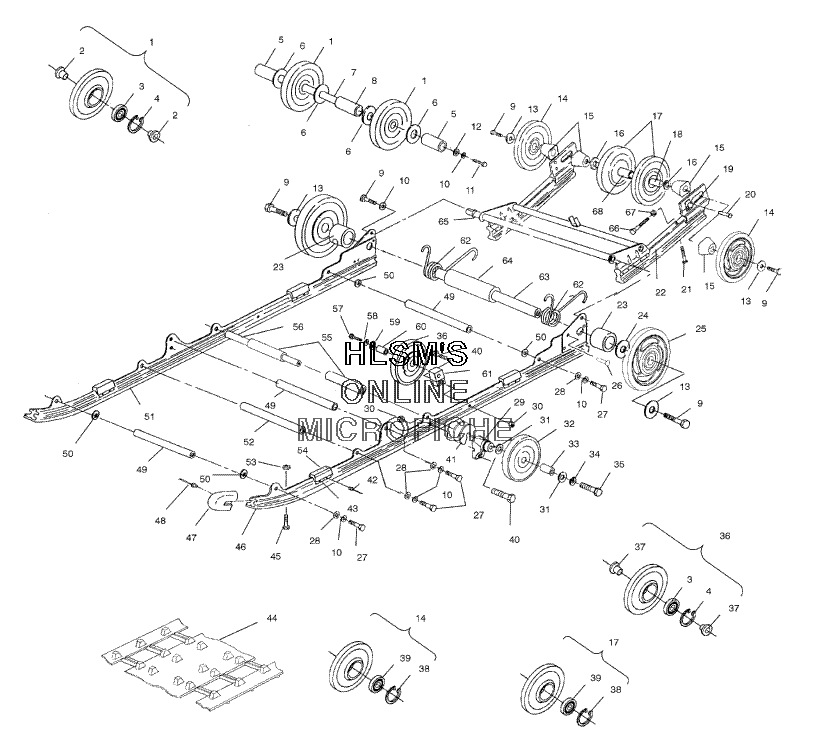

SUSPENSION - REAR TRACK для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска
-
№АртикулНазвание
-
11543021 WHEEL, CARRIER (INCL. 2, 3, 4)WHEEL, CARRIER (INCL. 2, 3, 4)
-
25430723 INSERTS, WHEELINSERTS, WHEEL
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
55333019-067 SPACER (OUTER)SPACER (OUTER)
-
67555726 WASHERWASHER
-
75020836 SHAFT, MOUNTINGSHAFT, MOUNTING
-
85333020-067 SPACER (BLACK), IN.CARRIERSPACER (BLACK), IN.CARRIER
-
97517731 BOLT (3/8 16X1.25)BOLT (3/8 16X1.25)
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117517435 SCREWSCREW
-
127555893 WASHER, FLATWASHER, FLAT
-
137556130 WASHER (.406X1.25X.125)WASHER (.406X1.25X.125)
-
141594083-312 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
155432535 SPACER, IDLERSPACER, IDLER
-
167555918 BUSHINGBUSHING
-
171594087 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
185020879 SHAFT, IDLERSHAFT, IDLER
-
195130530 BLOCK IDLER BOLT ADJ.BLOCK IDLER BOLT ADJ.
-
207621501 RIVETRIVET
-
217512225 SCREWSCREW
-
221541133 RAIL ASSY, SWINGARM, RIVETED (INCL. 19, 20)RAIL ASSY, SWINGARM, RIVETED (INCL. 19, 20)
-
225521452 SLIDER, WHI. (2)SLIDER, WHI. (2)
-
235330171-067 TUBESPACER, COUTSIDE (CENTER)TUBESPACER, COUTSIDE (CENTER)
-
247556301 BUSHINGBUSHING
-
251590276-312 IDLER WHEEL ASSY. SCRL6675 (I BLUE)IDLER WHEEL ASSY. SCRL6675 (I BLUE)
-
267621508 RIVETRIVET
-
277517247 SCREWSCREW
-
287555806 WASHER, FLATWASHER, FLAT
-
295630399 SPACERSPACER
-
307542439 NUT, NYLOKNUT, NYLOK
-
317555852 WASHER, FLATWASHER, FLAT
-
321590356-312 SCROLL WHEEL ASSY, 5.62 W/IN (BLUE)SCROLL WHEEL ASSY, 5.62 W/IN (BLUE)
-
335333116 SPACER, WHEELSPACER, WHEEL
-
347553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
357512538 BOLTBOLT
-
361590357 PLAIN WHEEL ASSY., 5.62 W/INSERT (INCL. 3, 4, 37)PLAIN WHEEL ASSY., 5.62 W/INSERT (INCL. 3, 4, 37)
-
375431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
387710444 RING, RETAININGRING, RETAINING
-
393514012 BEARINGBEARING
-
407512404 BOLTBOLT
-
415431366 ROLLER, SPRINGROLLER, SPRING
-
427621476 RIVETRIVET
-
435222629 REINFORCEMENT, BUMPERREINFORCEMENT, BUMPER
-
445411682 TRACK, SHOCKWAVE (20"X156X1")TRACK, SHOCKWAVE (20"X156X1")
-
445241473 CLIP, SLIDECLIP, SLIDE
-
457512227 SCREWSCREW
-
461540751 RAIL ASSY (LEFT) (INCL. 43, 47, 54)RAIL ASSY (LEFT) (INCL. 43, 47, 54)
-
465521452 SLIDER, WHI. (2)SLIDER, WHI. (2)
-
475430627 COVER RAIL TIPCOVER RAIL TIP
-
487621435 RIVETRIVET
-
495132239 SHAFT PIVOT (.750X13.235)SHAFT PIVOT (.750X13.235)
-
507555823 WASHERWASHER
-
511540752 RAIL ASSY. (RIGHT) (INCL. 43, 47, 54)RAIL ASSY. (RIGHT) (INCL. 43, 47, 54)
-
515521452 SLIDER, WHI. (2)SLIDER, WHI. (2)
-
525020720 SHAFT, SPANNERSHAFT, SPANNER
-
537542122 NUT NYLOKNUT NYLOK
-
545810554 BUMPER, RAILBUMPER, RAIL
-
555333138 SPACER, SHOCK (REAR)SPACER, SHOCK (REAR)
-
565020651 SHAFT, SHOCK (REAR)SHAFT, SHOCK (REAR)
-
577512659 BOLTBOLT
-
587553201 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
597555804 WASHERWASHER
-
605332786 SPACERSPACER
-
615130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
627041231-067 SPRING, EXT (REAR/BLACK)SPRING, EXT (REAR/BLACK)
-
635020726 SHAFT, IDLERSHAFT, IDLER
-
645333014-067 TUBE, IDLER (CENTER/BLACK)TUBE, IDLER (CENTER/BLACK)
-
655020725 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
667515459 SCREWSCREW
-
677542404 NUTNUT
-
685333523 SPACER, IDLERSPACER, IDLER
