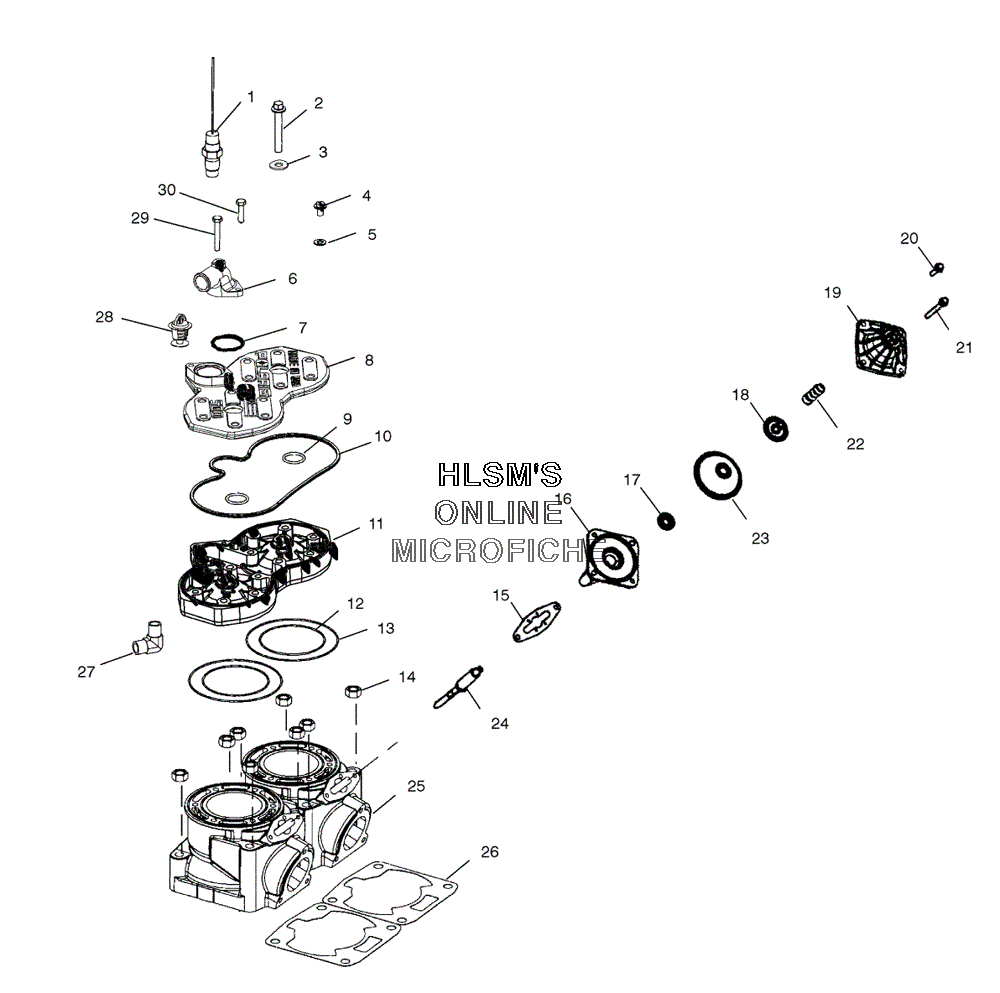

CYLINDER ASSEMBLY для Polaris 500 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
14010398 SENSOR THERMISTERSENSOR THERMISTER
-
27517281 SCREWSCREW
-
37556082 WASHERWASHER
-
47517679 SCREW HEXAGONSCREW HEXAGON
-
57555998 WASHER, FLATWASHER, FLAT
-
65631391 THERMOSTAT COVER M6 BLEED MACHTHERMOSTAT COVER M6 BLEED MACH
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85631424-329 COVER HEAD (BLACK)COVER HEAD (BLACK)
-
95411411 O-RINGO-RING
-
105411465 SEALSEAL
-
113021453 HEAD CYLINDER SEMI/SOLID (70.5 3/4)HEAD CYLINDER SEMI/SOLID (70.5 3/4)
-
125411199 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
161202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
175132950 WASHER BELLOWS EXHAUST VALVE DOMWASHER BELLOWS EXHAUST VALVE DOM
-
185631381 CAP/NUT BELLOWS EXHAUST VALVE DOMCAP/NUT BELLOWS EXHAUST VALVE DOM
-
191202640 HOUSING WITH BUSHING ASSYHOUSING WITH BUSHING ASSY
-
207516820 SCREWSCREW
-
217517932 SCREW HEXAGONSCREW HEXAGON
-
227041786-11 SPRING COMPRESSION (PINK/YELLOW)SPRING COMPRESSION (PINK/YELLOW)
-
235412399 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
245133379 VALVE GUILLOTINE FORGEDVALVE GUILLOTINE FORGED
-
253021334 CYLINDERCYLINDER
-
265812494 GASKET CYLINDER BASE, WEBGASKET CYLINDER BASE, WEB
-
277052234 FITTING WITH DRISEAL (3/4)FITTING WITH DRISEAL (3/4)
-
287052258 THERMOSTAT 120ШF WITH OUT BYPASSTHERMOSTAT 120ШF WITH OUT BYPASS
-
297517950 SCREW HEXAGONSCREW HEXAGON
-
307516822 SCREWSCREW
