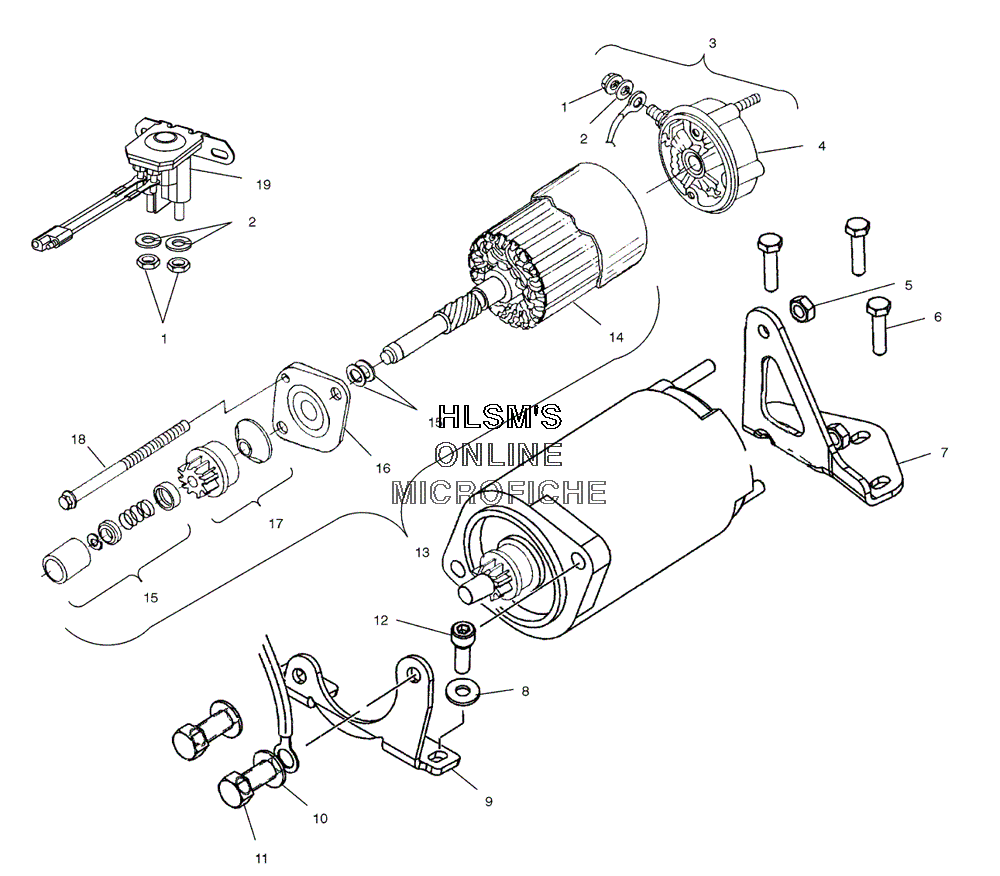

STARTING MOTOR для Polaris 500 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
17542105 NUT HEXAGONNUT HEXAGON
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
32200758 COMMUTATOR CAP KIT ASSY (INCL. 4)COMMUTATOR CAP KIT ASSY (INCL. 4)
-
42200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
57542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
67516823 SCREWSCREW
-
75244250 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
87555843 WASHER WROUGHTWASHER WROUGHT
-
95245467 BRACKET STARTER (FRONT)BRACKET STARTER (FRONT)
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117512492 SCREWSCREW
-
127517322 SCREWSCREW
-
134170006 MOTOR, STARTER DOMESTICMOTOR, STARTER DOMESTIC
-
142200756 ARMATURE KIT ASSYARMATURE KIT ASSY
-
152200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
162200757 DRIVECAP KIT ASSYDRIVECAP KIT ASSY
-
172200754 DRIVE KIT ASSYDRIVE KIT ASSY
-
182200753 SCREW KITSCREW KIT
-
194010930 SWITCH MAGNETIC (INCL. 17, 18)SWITCH MAGNETIC (INCL. 17, 18)
