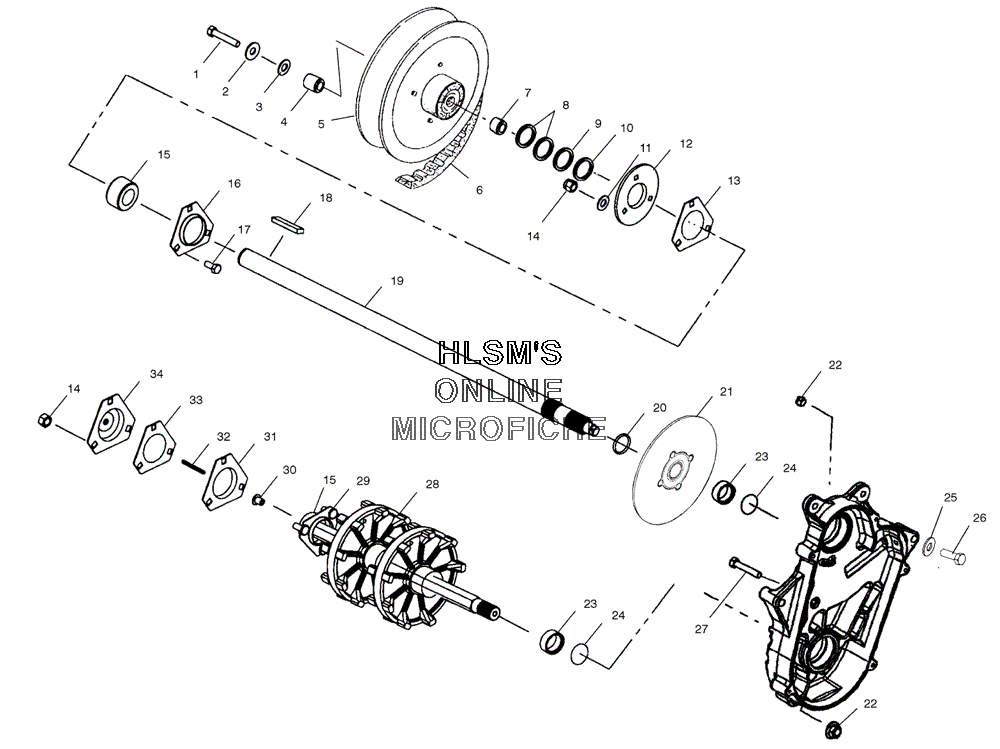

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
75020837 SPACERSPACER
-
87555917 WASHERWASHER
-
97555864 WASHERWASHER
-
107556509 BUSHINGBUSHING
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
147542324 NUT, NYLOKNUT, NYLOK
-
153514525 BEARINGBEARING
-
165222751 FLANGETTEFLANGETTE
-
177512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
187721116 KEYKEY
-
191332220 JACKSHAFT WITH BEARING ASSY (15 T) (INCL. 15, 20)JACKSHAFT WITH BEARING ASSY (15 T) (INCL. 15, 20)
-
207710422 RING, RETAININGRING, RETAINING
-
212202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
227542423 NUT, FLANGENUT, FLANGE
-
235020588 SLEEVE, SEALSLEEVE, SEAL
-
245410613 O-RINGO-RING
-
257558403 WASHER, WROUGHTWASHER, WROUGHT
-
267518002 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
277515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
281590346 DRSHAFT, 2 DRIVE ASSY (SMOOTH) (INCL. 29, 30)DRSHAFT, 2 DRIVE ASSY (SMOOTH) (INCL. 29, 30)
-
291012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
303280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
315243529 FLANGETTE OFFSET, WITH HOLEFLANGETTE OFFSET, WITH HOLE
-
323280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
335830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
343280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
