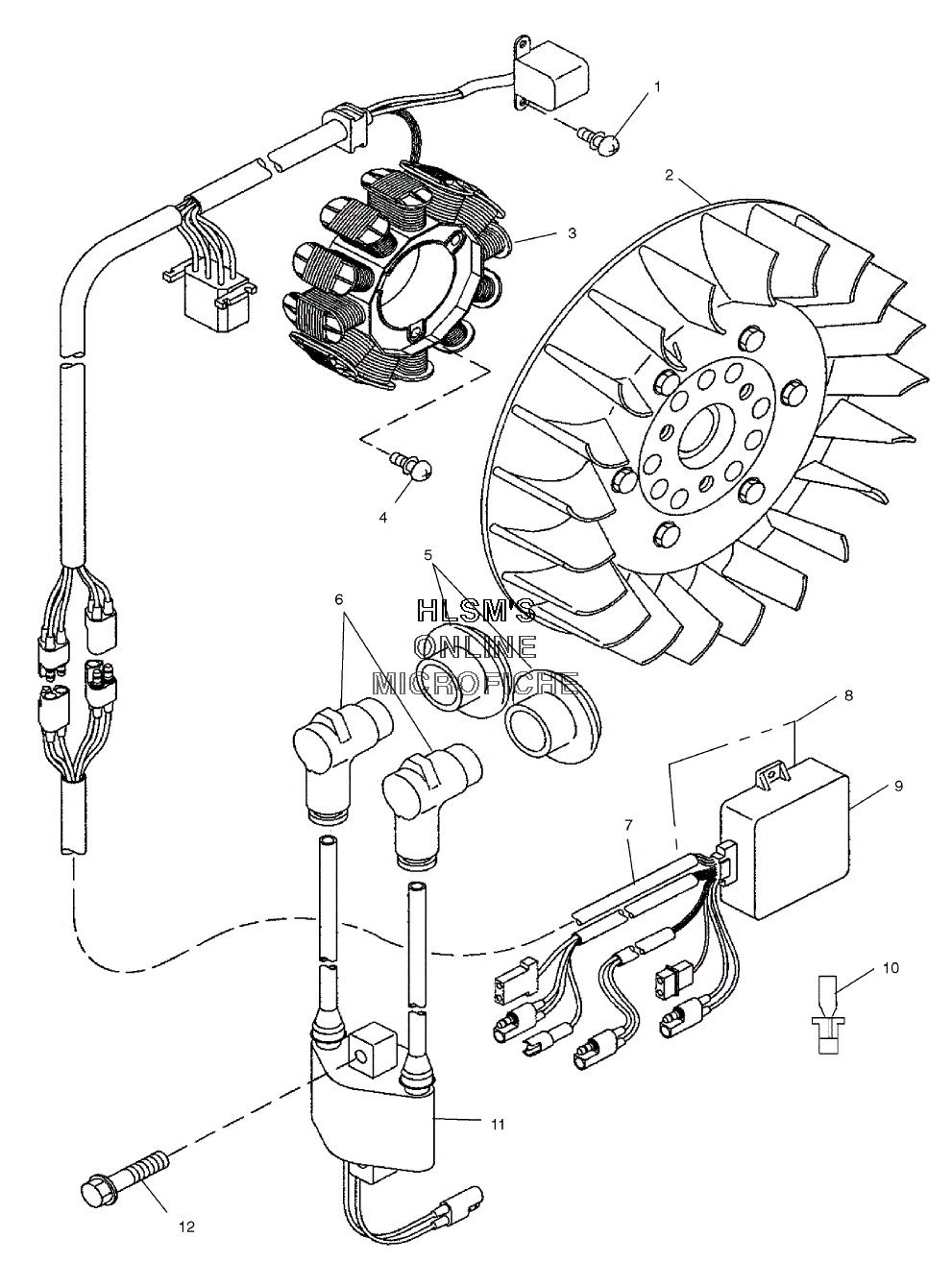

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23087213 FLYWHEEL, ASSYFLYWHEEL, ASSY
-
33087212 STATOR ASSYSTATOR ASSY
-
43085697 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
53085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
63086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
73087219 UNIT HARNESSUNIT HARNESS
-
83088219 CDI SYSTEM ASSY (INCL.7, 9) (IF BUILT BEFORE 4/1/03)CDI SYSTEM ASSY (INCL.7, 9) (IF BUILT BEFORE 4/1/03)
-
83089229 CDI SYSTEM (INCL.7, 9) (IF BUILT AFTER 4/1/03)CDI SYSTEM (INCL.7, 9) (IF BUILT AFTER 4/1/03)
-
93088220 CDI SYSTEM ASSY (IF BUILT BEFORE 4/1/03)CDI SYSTEM ASSY (IF BUILT BEFORE 4/1/03)
-
93089230 CDI SYSTEM (IF BUILT AFTER 4/1/03)CDI SYSTEM (IF BUILT AFTER 4/1/03)
-
102461060 JUMPER STUBBER, W/ES (E/S ONLY)JUMPER STUBBER, W/ES (E/S ONLY)
-
113087214 IGNITION COIL, ASSY (INCL. 6)IGNITION COIL, ASSY (INCL. 6)
-
113087216 IGNITION COIL, ASSYIGNITION COIL, ASSY
-
123086751 BOLT, FLANGEBOLT, FLANGE
